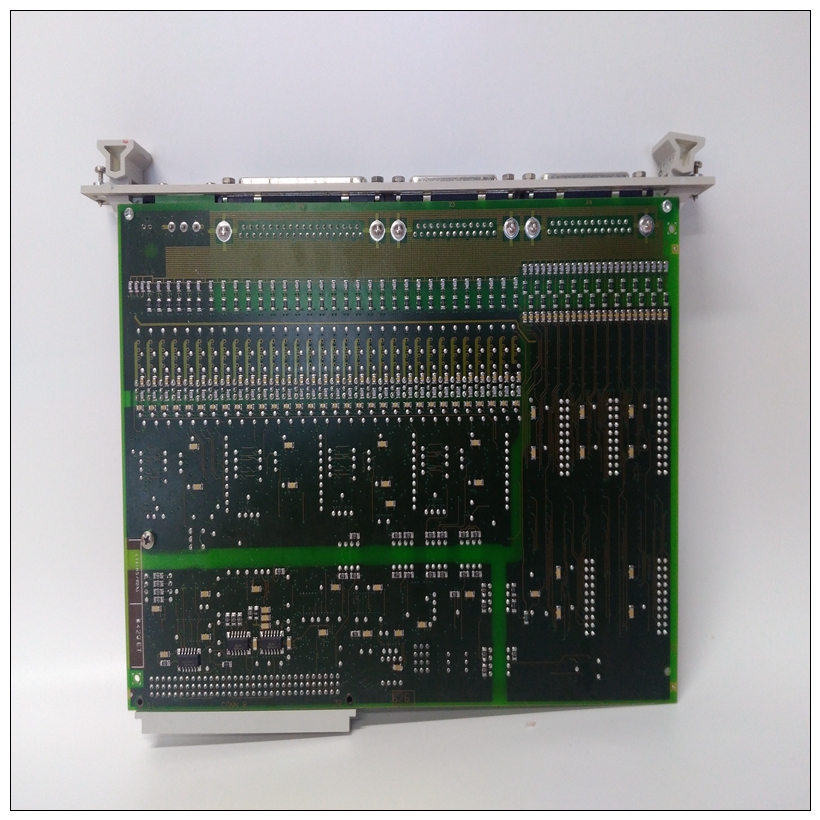

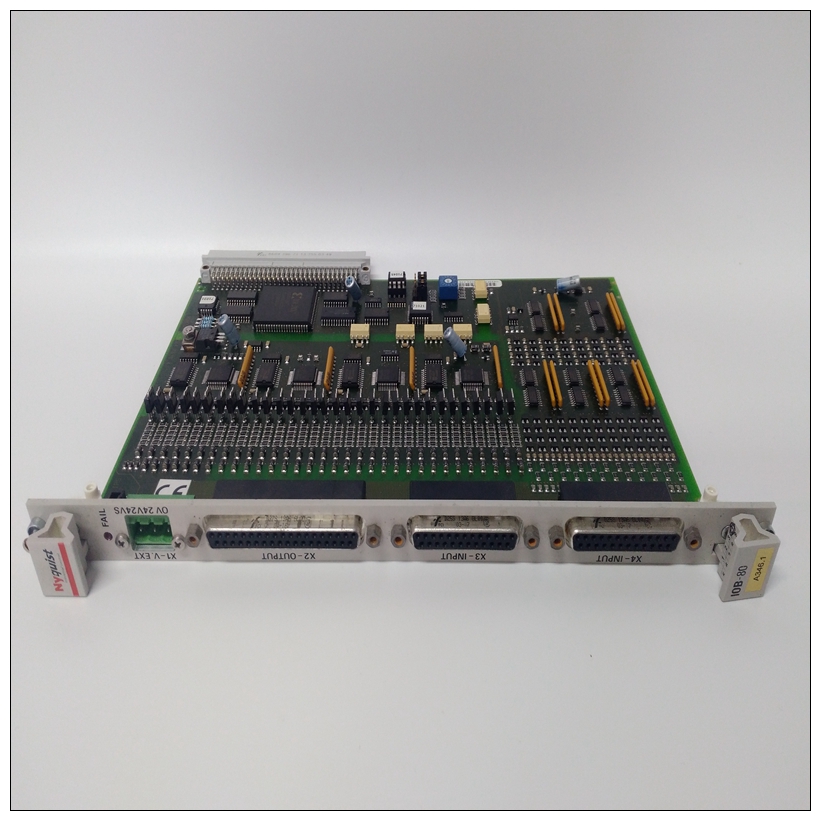

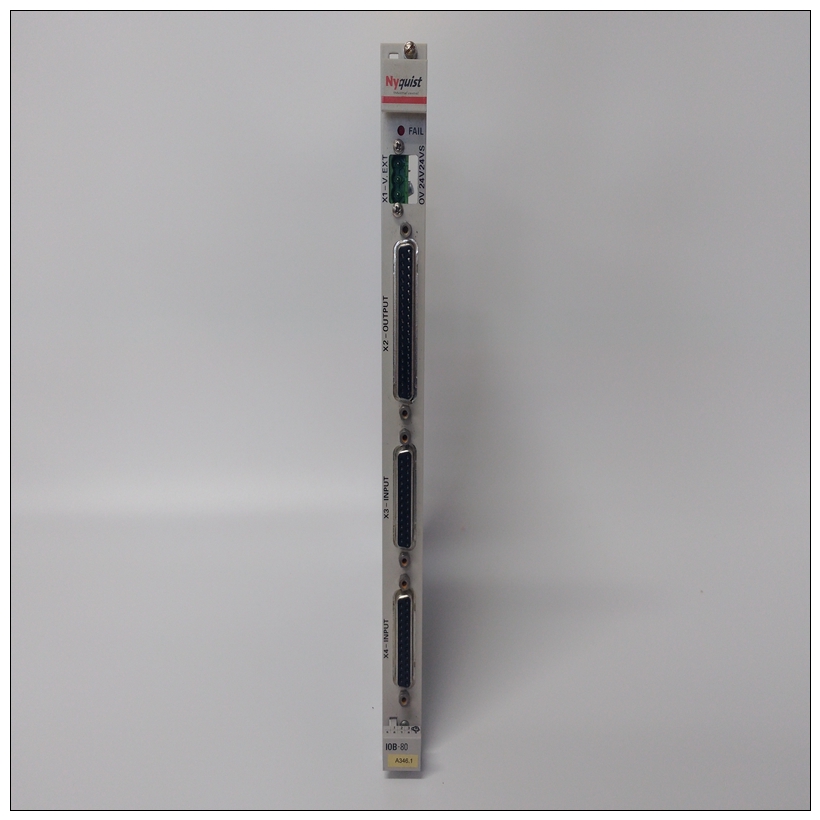

NYQUIST IOB-80串行链路卡件,IOB-80配置说明
边缘连接器清洁要清洁边缘连接器触点：
1.使用80%异丙醇（99.5%电子级）和20%蒸馏水的溶剂混合物。
2、用溶剂混合物浸泡无绒布。
3、平行于边缘连接触点来回加工布。
4、用蘸有溶剂的干净布重复上述步骤混合物
5无绒布。
要清洁污损或深度染色的边缘连接器触点：
NYQUIST IOB-80串行链路卡件1.使用Eberhard Faber（400A）粉色珍珠橡皮擦或同等工具去除污渍。也可以使用玻璃纤维或尼龙抛光刷。
2、在打磨过程中，使用80/20异丙醇/水溶液将静电放电降至最低。
3、打磨时不要用力过大。仅限使用足够的力使接触面发光。检查边缘清洁后的连接器，以确保接触面没有损失。清洁阴边缘连接器
1.使用泡沫棉签或无绒布包裹在
一块废电路板。将拭子或抹布浸泡在电子级异丙醇中。
2、将覆布电路板的拭子插入边缘然后将其来回移动以清洁触点。
3、喷洒异丙醇，冲洗边缘连接器触点。
4、去除多余的酒精，用压缩空气干燥
EDGE CONNECTOR CLEANING
To clean edge connector contacts:
1. Use a solvent mixture of 80% isopropyl alcohol (99.5% electronic grade) and 20% distilled water.
2. Soak a lint free cloth with the solvent mixture.
3. Work the cloth back and forth parallel to the edge connector contacts.
4. Repeat with a clean cloth that is soaked with the solvent
mixture.
5. Dry the edge connector contact area by wiping with a clean
lint free cloth.
To clean tarnished or deeply stained edge connector contacts:
1. Use an Eberhard Faber (400A) pink pearl eraser, or equivalent to remove tarnish or stains. Fiberglass or nylon burnishing brushes may also be used.
2. Minimize electrostatic discharge by using the 80/20 isopropyl alcohol/water solution during burnishing.
3. Do not use excessive force while burnishing. Use only
enough force to shine the contact surface. Inspect the edge
connector after cleaning to assure no loss of contact surface.CLEANING FEMALE EDGE CONNECTORS
1. Use a foam tipped swab or a lint free cloth wrapped over a
piece of scrap circuit board. Soak the swab or cloth in electronic grade isopropyl alcohol.
2. Insert the swab of cloth covered circuit board into edge
connector and work it back and forth to clean the contacts.
3. Rinse the edge connector contacts by spraying with isopropyl alcohol.
4. Remove excess alcohol and dry using compressed air
