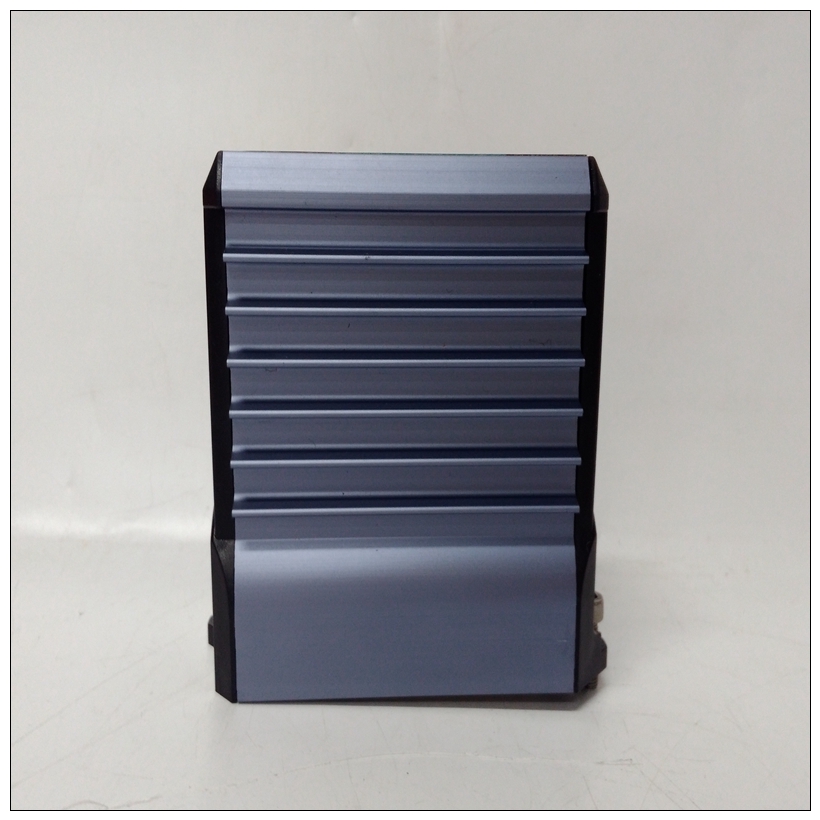

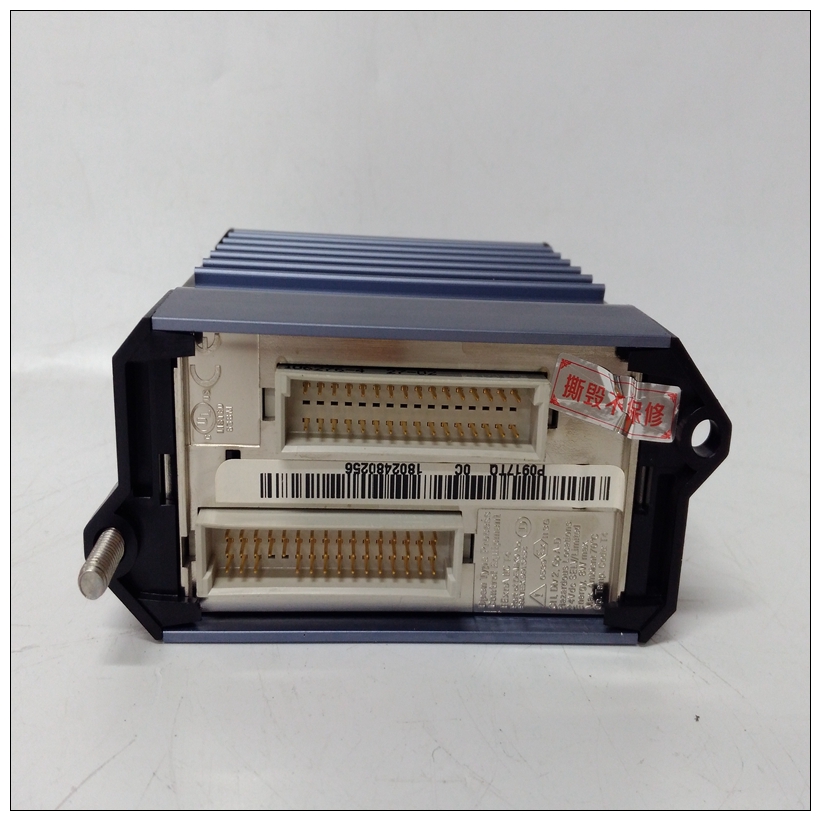

P0917TQ输出个性模块,FBM215配置教程
维护过程所需的工具和设备包括：
•抗静电真空。
•四英寸一字螺丝刀（适用于任意端接装置端子或终端模块端子）。
•异丙醇（99.5%电子级）。
•Eberhard Faber（400A）粉色珍珠橡皮擦。
•玻璃纤维抛光刷。
•无绒布。
•功能代码应用手册。•小尖嘴钳。
P0917TQ输出个性模块预防性维护程序本节涵盖了表7-1中需要特定说明或进一步解释：
•检查信号、电源和接地连接。
•清洁印刷电路板和边缘连接器。
•校准LVDT变压器和液压执行器检查所有信号接线、电源和接地连接HSS模块及其相关终端单元或模块。检查连接时，务必转动螺钉、螺母或其他仅按拧紧方向紧固装置。如果连接松动，将拧紧。如果连接紧密，则拧紧操作将验证其是否牢固。绝对不能有任何松开连接的动作。
The tools and equipment required for the maintenance procedures include:
• Antistatic vacuum.
• Four-inch flat screwdriver (suitable for either termination
unit terminals or termination module terminals).
• Isopropyl alcohol (99.5 percent electronic grade).
• Eberhard Faber (400A) pink pearl eraser.
• Fiberglass burnishing brush.
• Lint free cloths.
• Function Code Application Manual. • Small needle nose pliers.
PREVENTIVE MAINTENANCE PROCEDURES
This section covers tasks from Table 7-1 that require specific
instructions or further explanation:
• Checking signal, power and ground connections.
• Cleaning printed circuit boards and edge connectors.
• Calibrating the LVDT transformer and hydraulic actuatorCheck all signal wiring, power and ground connections for the
HSS module and its associated termination unit or module.
When checking connections, always turn a screw, nut or other
fastening device in the direction to tighten only. If the connection is loose, it will be tightened. If the connection is tight, the
tightening action will verify that it is secure. There must not be
any motion done to loosen the connection.
