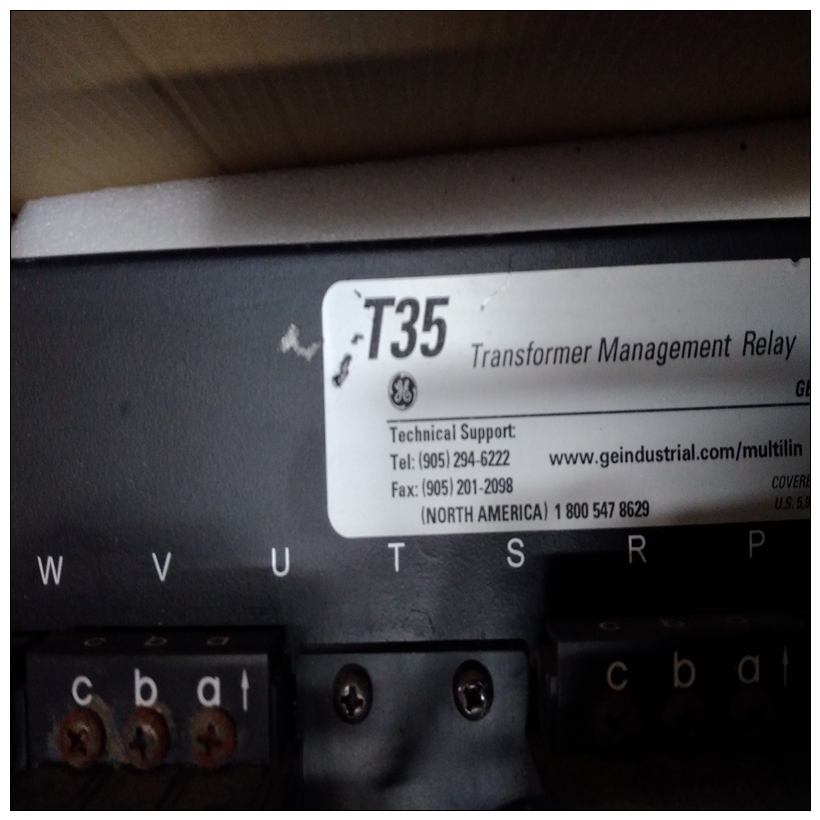

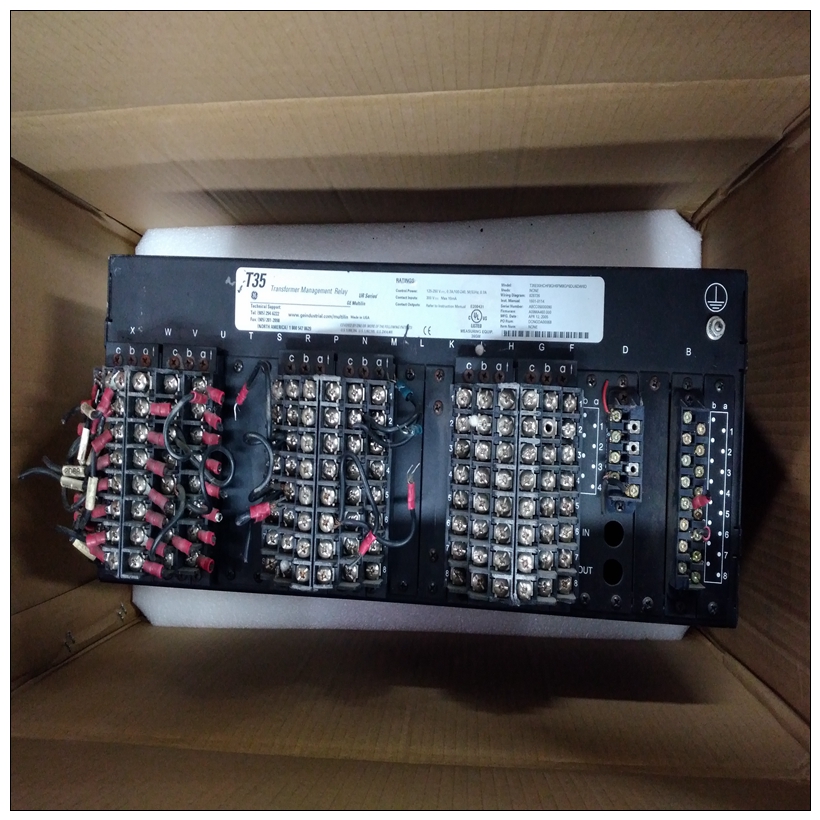

GE T35继电模块,T35使用在哪里
100%到0%的周期重复校准周期数在<S9>中规定。记录最终0%读数后执行器在选定的冲程时间移动到位置来自MFP模块的需求。当校准周期为完成后,执行器从如果IMHSS03模块处于自动调谐状态,则为MFP模块模式在手动调谐模式下,当校准周期完成时,执行器倾斜到其预校准位置。让循环完成。所有循环完成后校准的差分电压写入HSS模块双端口RAM。
GE T35继电模块观察模块状态输出块N+6的位0和1。当LVDT校准为时,这些位的二进制值为0正在进行。校准完成后,这些位具有二进制值为1。如果模块状态位中出现二进制2,则错误在校准过程中发生。所有输出都将显示质量差,HSS模块将保留以前的校准值。模块状态中的其他错误位输出块N+6和LVDT状态输出块N+7将显示发生的错误。参考第6节和表6-5用于纠正措施。更正错误后,重复校准程序。注:清除校准错误状态和不良输出质量
在不执行另一次校准的情况下,将校准模式设置为dis able,<S11>=0。
The 100% to 0% cycle repeats the number of calibration cycles
specified in <S9>. After recording the final 0% reading, the
actuator moves at the selected stroke time to the position
demand from the MFP module. When the calibration cycles are
complete, the actuator ramps to the position demand from the
MFP module if the IMHSS03 module is in the automatic tuning
mode. In manual tuning mode, the actuator ramps to its preca
libration position when the calibration cycles are complete.
Allow the cycle to complete. After completion of all cycles, the
calibrated differential voltages are written to HSS module
dual-port RAM.
6. Observe the module status output block N+6, bits 0 and 1.
The binary value of these bits is 0 while the LVDT calibration is
in progress. When the calibration is complete, these bits have a
binary value of 1.
If a binary 2 appears in the module status bits, then an error
has occurred during the calibration procedure. All outputs will
show bad quality and the HSS module will retain the previous
calibration values. The other error bits in the module status
output blocks N+6 and the LVDT status output blocks N+7 will
show which error has occurred. Refer to Section 6 and Table
6-5 for corrective action. After correcting the error, repeat the
calibration procedure.
NOTE: To clear the calibration error status and bad output qualities
without performing another calibration, set calibrate mode to dis
able, <S11> = 0.
