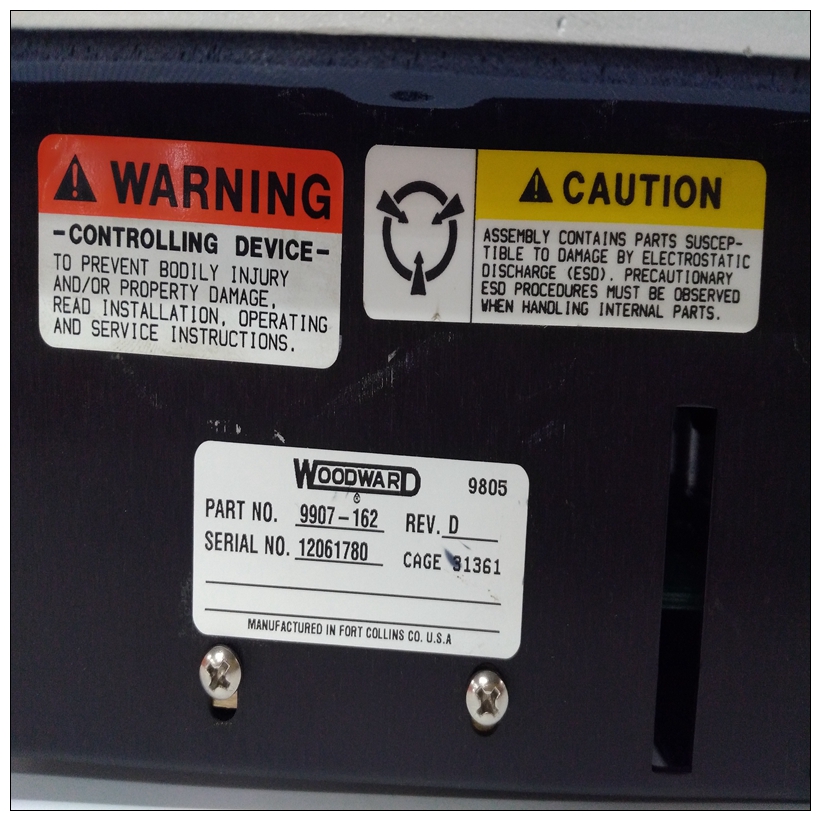

WOODWARD 9907-162调速器,9907-162使用尺寸
如果本节中的跳线和双列直插式开关设置为功能代码为55的操作：
1、配置具有功能的多功能处理器代码55。有关详细信息，请参阅功能代码应用手册有关如何配置功能代码55的信息。
2、调整解调器增益，校准LVDT变换器，并调整PID控制器增益。有关详细信息，请参阅第4节解释如何使用功能进行自动（仅解调器增益）或手动校准和调谐的程序代码55。
WOODWARD 9907-162调速器功能代码150配置如果跳线和双列直插式开关已设置为运行功能代码150：
1、有关配置说明的信息，请参阅功能代码应用手册。
2、使用功能代码150配置处理器模块，规范S1和S2。
3、将其余规格保留为默认值。它们需要在模块校准过程中进行修改。参考附录B校准LVDT变压器并使用功能代码150调整PID控制器增益。
If the jumpers and dipswitches in this section are set up for
operation with function code 55:
1. Configure the multi-function processor with function
code 55. Refer to the Function Code Application Manual for
information on how to configure function code 55.
2. Tune the demodulator gain, calibrate the LVDT trans
former, and tune the PID controller gain. Refer to Section 4 for
procedures explaining how to do either automatic (demodula
tor gain only) or manual calibration and tuning using function
code 55.
FUNCTION CODE 150 CONFIGURATION
If the jumpers and dipswitches have been set up for operation
with function code 150:
1. Refer to the Function Code Application Manual for infor
mation on configuration instructions.
2. Configure the processor module with function code 150,
specifications S1 and S2.
3. Leave the remaining specifications at their default values.
They require modification during the module calibration proce
dure. Refer to Appendix B to calibrate the LVDT transformer
and tune the PID controller gain using function code 150.
