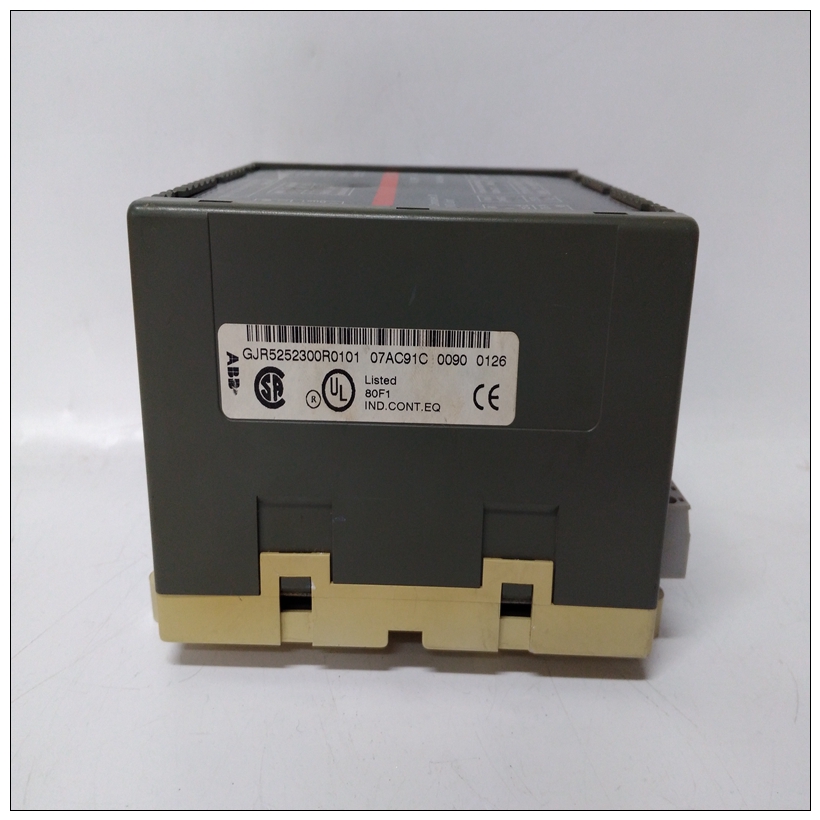

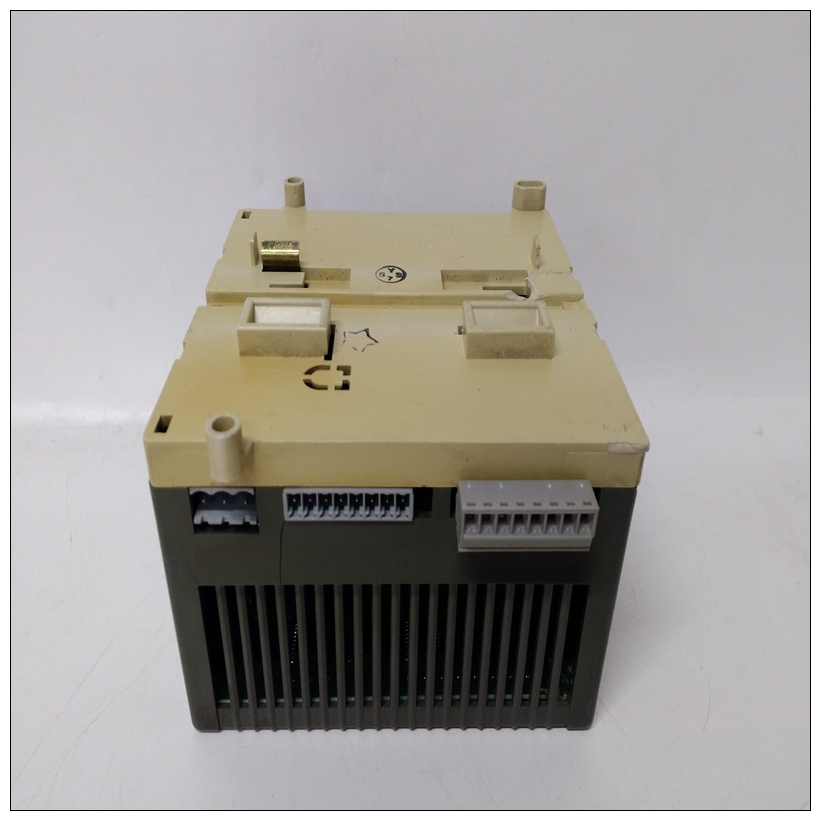

07AC91输出逻辑模块,07AC91使用流程
不必要的电路板故障，不要使用铅笔 cil设置双列直插式开关。
开箱和检查1、立即检查硬件，以确认其没有在运输过程中受损。
2.将任何此类损坏通知最近的贝利销售办事处。
3、向处理货物的运输公司提出任何损坏索赔。
4、使用原包装材料和容器储存硬件
5、将硬件存放在空气质量良好的环境中，无极端温度和湿度。安装过程硬件
07AC91输出逻辑模块安装节流阀、液压执行器、伺服阀（或I/H转换器）和LVDT变压器：
1、按照制造商的指示和建议进行安装。
2、使用制造商提供的电缆尺寸和类型建议。
安装终端装置或模块有关安装过程接线和液压伺服终端装置（THS），数字输入/输出终端
装置（TDI）或数字输入/输出终端模块（IDI），参见适当的终端设备说明。附录C
通过E包含每个终端设备。
unnecessary circuit board malfunction, do not use a lead pen
cil to set a dipswitch.
UNPACKING AND INSPECTION
1. Examine the hardware immediately to verify that it has not
been damaged in transit.
2. Notify the nearest Bailey sales office of any such damage.
3. File a claim for any damage with the transportation com
pany that handled the shipment.
4. Use the original packing material and container to store the
hardware.
5. Store the hardware in an environment of good air quality,
free from temperature and moisture extremes.
INSTALLING THE PROCESS HARDWARE
To install the throttle valve, hydraulic actuator, servo valve (or
I/H converter) and LVDT transformer:
1. Follow the manufacturer’s directions and recommenda
tions for installation.
2. Use the size and type of cabling the manufacturer
recommends.
INSTALLING THE TERMINATION UNIT OR MODULE
For information about installing process wiring and the
hydraulic servo termination unit (THS), digital I/O termination
unit (TDI), or digital I/O termination module (IDI), refer to the
appropriate termination device instruction. Appendices C
through E contain quick reference information for each of the
termination devices.
