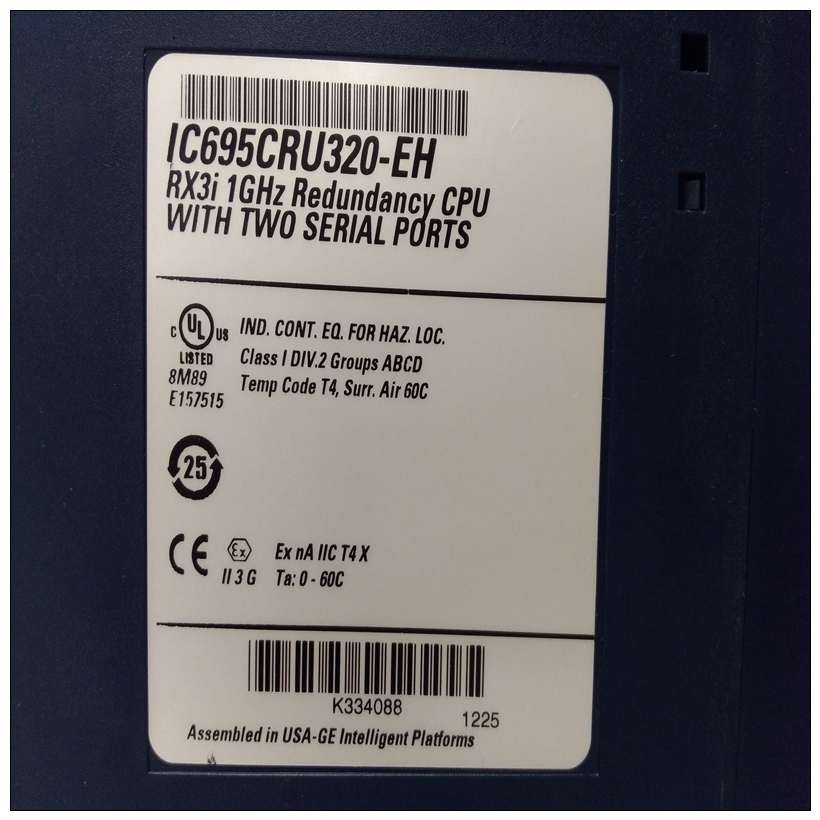

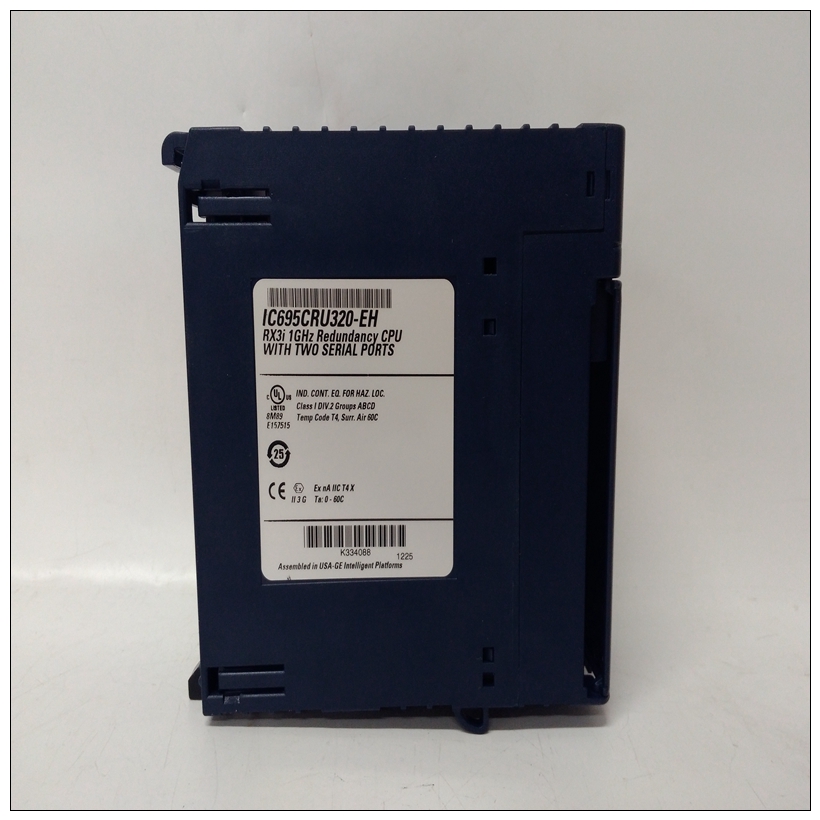

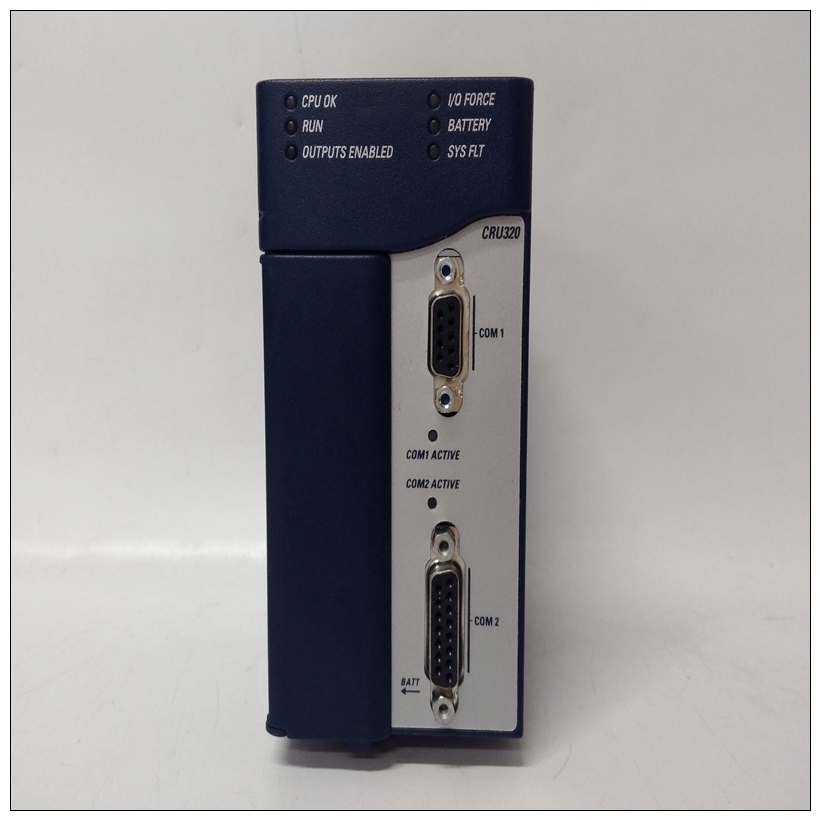

IC695CRU320燃机模块,GE电气IC695CRU320
高速、冗余、对等通信链路。用于在过程控制单元内的智能模块之间传输信息。
CTM配置和调谐模块。提供系统配置的本地方法，通过模块总线对控制模块进行调谐和监控。
CTT配置和调谐终端。具有与相同功能的手持模块配置和调整模块。
双分流双列直插式封装，带短路带。双列直插式双列直插式封装，包含开关。
IC695CRU320燃机模块FCS频率计数器模块。FTP现场终端面板。INFI 90机柜内的一个面板，用于安装终端装置。
函数代码操作特定函数的算法。这些功能是链接的共同形成控制策略。
液压执行器将液压动力转换为机械功的气缸（打开或关闭阀门）。
液压伺服阀门由校准电信号驱动的阀门，用于加载或卸载液压流体双作用液压执行器的一侧。
I/H转换器由校准的单极电流信号驱动的装置，将液压流体加载或卸载到双作用液压执行器的一侧。
High speed, redundant, peer-to-peer communication link. Used to transfer information between intelligent modules within a process control unit.
CTM Configuration and tuning module. Provides a local means for system configuration,
tuning and monitoring of control modules over module bus.
CTT Configuration and tuning terminal. A handheld module with the same functionality as
the configuration and tuning module.
Dipshunt Dual in-line package with shorting straps.
Dipswitch Dual in-line package that contains switches.
FCS Frequency counter module.
FTP Field termination panel. A panel inside the INFI 90 cabinet that provides a place to
mount termination units.
Function Code An algorithm which manipulates specific functions. These functions are linked
together to form the control strategy.
Hydraulic Actuator A cylinder that converts hydraulic power into mechanical work (opening or closing a
valve).
Hydraulic Servo
Valve
A valve, driven by a calibrated electrical signal, that loads or unloads hydraulic fluid
to one side of a double acting hydraulic actuator.
I/H Converter A device, driven by a calibrated unipolar current signal, that loads or unloads hydraulic fluid to one side of a double acting hydraulic actuator.
