Alstom HE693THM449B热电偶输入模块
1.产 品 资 料 介 绍：
中文资料：
Alstom HE693THM449B热电偶输入模块是一款专为GE Fanuc 90-30系列可编程逻辑控制器（PLC）设计的输入模块。该模块用于采集和处理来自热电偶传感器的温度数据，广泛应用于需要精确温度监控和控制的工业自动化系统。以下是关于该模块的详细信息及其应用领域：
关键特点
多通道输入：
- 提供多个热电偶输入通道，支持多点温度测量和监控。
多种热电偶类型支持：
- 兼容多种热电偶类型，包括J型、K型、T型、E型等，适应不同的工业应用需求。
高精度测量：
- 提供高精度的温度测量和数据处理，确保温度监控的准确性和可靠性。
实时数据处理：
- 实时采集和处理温度数据，支持快速响应和控制。
易于集成：
- 与GE Fanuc 90-30系列PLC无缝集成，通过标准编程软件进行配置和管理，便于系统集成和应用。
诊断功能：
- 配备自诊断功能，能够检测和报告传感器故障或线路问题，确保系统运行的稳定性和安全性。
技术规格
- 输入通道数：通常为4或8个热电偶输入通道
- 支持的热电偶类型：J型、K型、T型、E型等
- 测量范围：取决于热电偶类型，通常覆盖宽温度范围
- 精度：高精度温度测量，具体精度取决于热电偶类型和测量范围
- 隔离保护：通道间和通道与系统间具备电气隔离，防止干扰
应用领域
工业自动化：
- 用于生产过程中的温度监控和控制，如冶金、化工、食品加工等行业的加热和冷却过程。
- 确保生产工艺的温度控制在严格的范围内，提高产品质量和生产效率。
过程控制：
- 在化工、石油、天然气等过程工业中，监测和控制反应器、蒸馏塔等设备的温度，确保工艺过程的安全和稳定。
- 实现温度数据的实时采集和反馈，优化过程参数。
电力系统：
- 在发电厂和变电站中，监测变压器、发电机等关键设备的温度，防止过热和故障。
- 提供实时温度数据，支持设备的预防性维护和故障诊断。
暖通空调：
- 用于HVAC系统的温度监控和控制，确保室内环境的舒适性和系统的高效运行。
- 监测和控制加热、通风和空调设备的温度，优化能源使用。
制药行业：
- 在制药生产过程中，监测和控制反应器、干燥机等设备的温度，确保药品生产的质量和安全。
- 提供精确的温度控制，满足严格的生产规范和要求。
科研实验：
- 用于实验室和科研机构的温度测量和控制，支持各种科学实验和研究。
- 提供高精度温度数据，满足科研实验的需求。
总结
Alstom HE693THM449B热电偶输入模块通过其多通道、高精度和多种热电偶类型支持，广泛应用于工业自动化、过程控制、电力系统、暖通空调、制药行业和科研实验等领域。它不仅提高了系统的温度监控和控制能力，还确保了生产和运行过程的安全性和可靠性，帮助用户实现高效、稳定的温度管理。
英文资料：
The Alstom HE693THM449B thermocouple input module is an input module designed specifically for GE Fanuc 90-30 series programmable logic controllers (PLCs). This module is used to collect and process temperature data from thermocouple sensors, and is widely used in industrial automation systems that require precise temperature monitoring and control. The following is detailed information about the module and its application areas:
Key features
Multi channel input:
Provide multiple thermocouple input channels, supporting multi-point temperature measurement and monitoring.
Multiple thermocouple types supported:
Compatible with multiple thermocouple types, including J-type, K-type, T-type, E-type, etc., to meet different industrial application requirements.
High precision measurement:
Provide high-precision temperature measurement and data processing to ensure the accuracy and reliability of temperature monitoring.
Real time data processing:
Real time collection and processing of temperature data, supporting rapid response and control.
Easy to integrate:
Seamless integration with GE Fanuc 90-30 series PLC, configured and managed through standard programming software for easy system integration and application.
Diagnostic function:
Equipped with self diagnostic function, it can detect and report sensor faults or circuit problems, ensuring the stability and safety of system operation.
technical specifications
Number of input channels: typically 4 or 8 thermocouple input channels
Supported thermocouple types: J-type, K-type, T-type, E-type, etc
Measurement range: Depending on the type of thermocouple, typically covering a wide temperature range
Accuracy: High precision temperature measurement, specific accuracy depends on thermocouple type and measurement range
Isolation protection: Electrical isolation is provided between channels and between channels and systems to prevent interference
application area
Industrial automation:
Used for temperature monitoring and control in production processes, such as heating and cooling processes in industries such as metallurgy, chemical engineering, and food processing.
Ensure that the temperature of the production process is strictly controlled within a certain range to improve product quality and production efficiency.
Process control:
In process industries such as chemical, petroleum, and natural gas, monitoring and controlling the temperature of reactors, distillation towers, and other equipment ensures the safety and stability of the process.
Real time collection and feedback of temperature data, optimizing process parameters.
Power system:
Monitor the temperature of key equipment such as transformers and generators in power plants and substations to prevent overheating and malfunctions.
Provide real-time temperature data to support preventive maintenance and fault diagnosis of equipment.
HVAC:
Used for temperature monitoring and control of HVAC systems, ensuring the comfort of indoor environments and efficient operation of the system.
Monitor and control the temperature of heating, ventilation, and air conditioning equipment to optimize energy use.
Pharmaceutical industry:
In the pharmaceutical production process, monitoring and controlling the temperature of equipment such as reactors and dryers ensures the quality and safety of drug production.
Provide precise temperature control to meet strict production standards and requirements.
Research experiment:
Used for temperature measurement and control in laboratories and research institutions, supporting various scientific experiments and research.
Provide high-precision temperature data to meet the needs of scientific research experiments.
summary
The Alstom HE693THM449B thermocouple input module is widely used in industrial automation, process control, power systems, HVAC, pharmaceutical industry, and scientific research experiments due to its multi-channel, high-precision, and support for multiple thermocouple types. It not only improves the temperature monitoring and control capabilities of the system, but also ensures the safety and reliability of production and operation processes, helping users achieve efficient and stable temperature management.

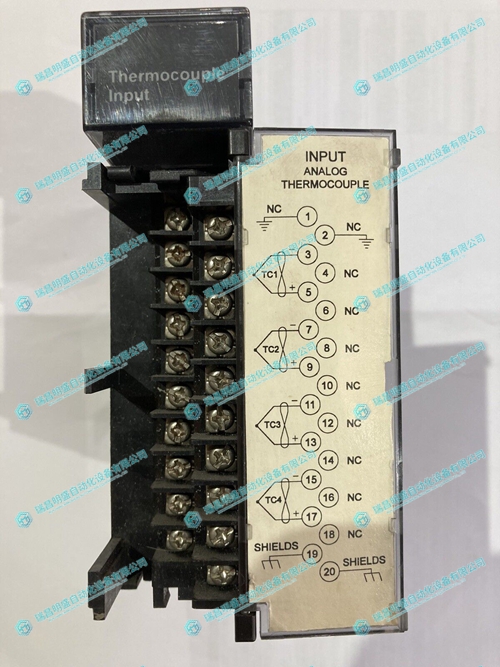

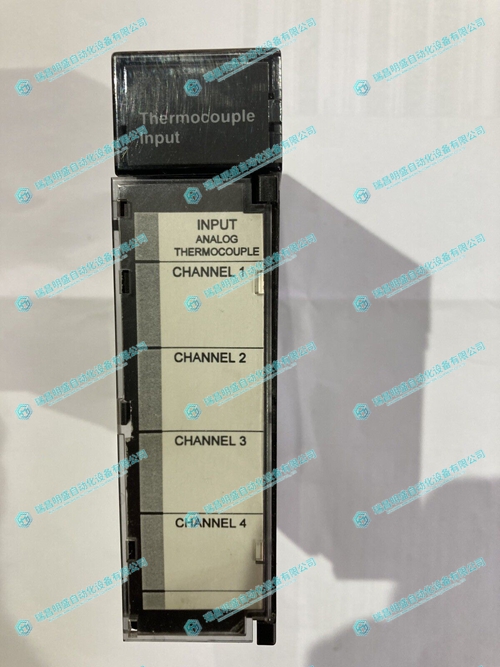

2.产 品 展 示
