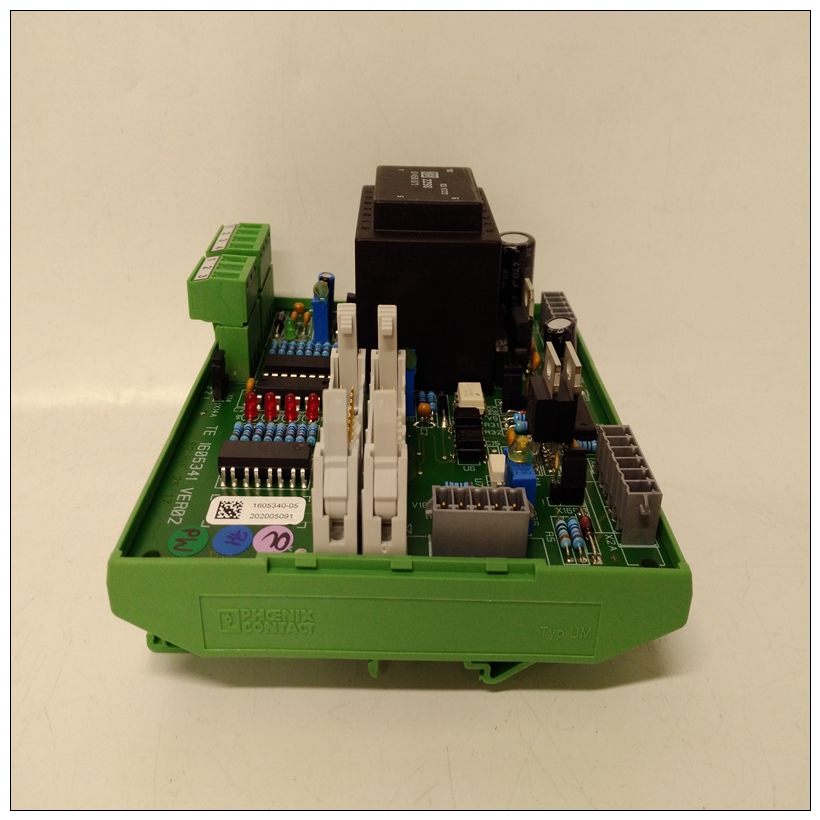

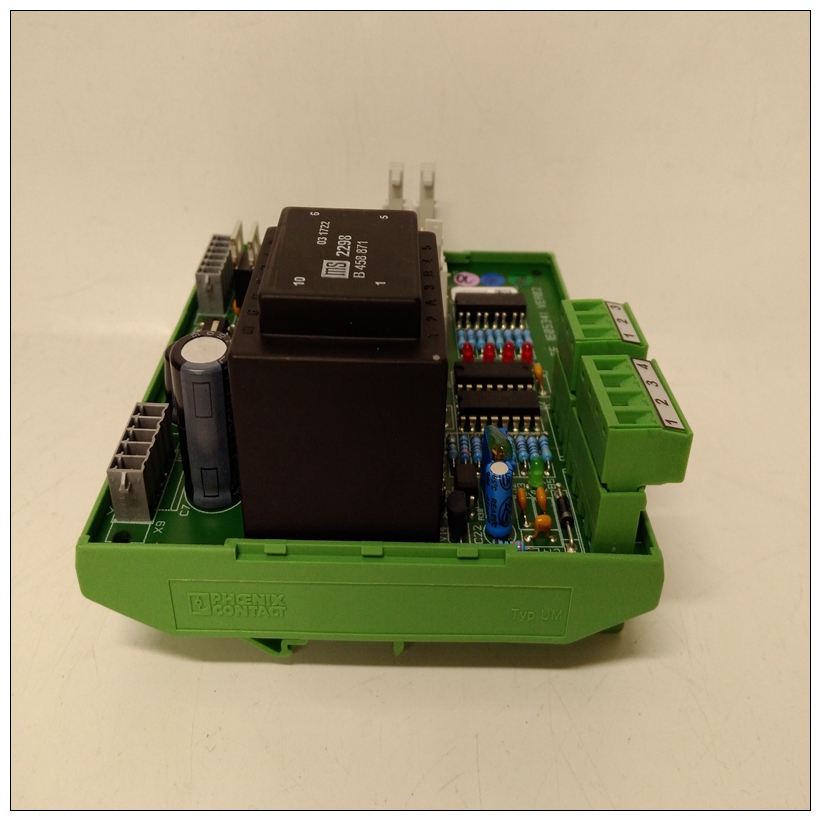

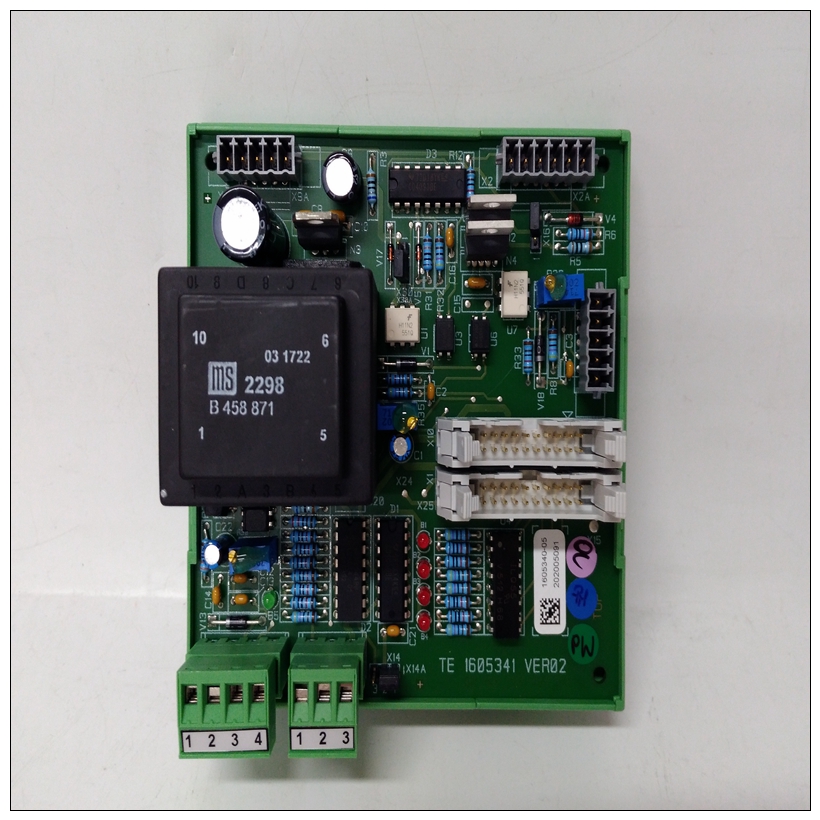

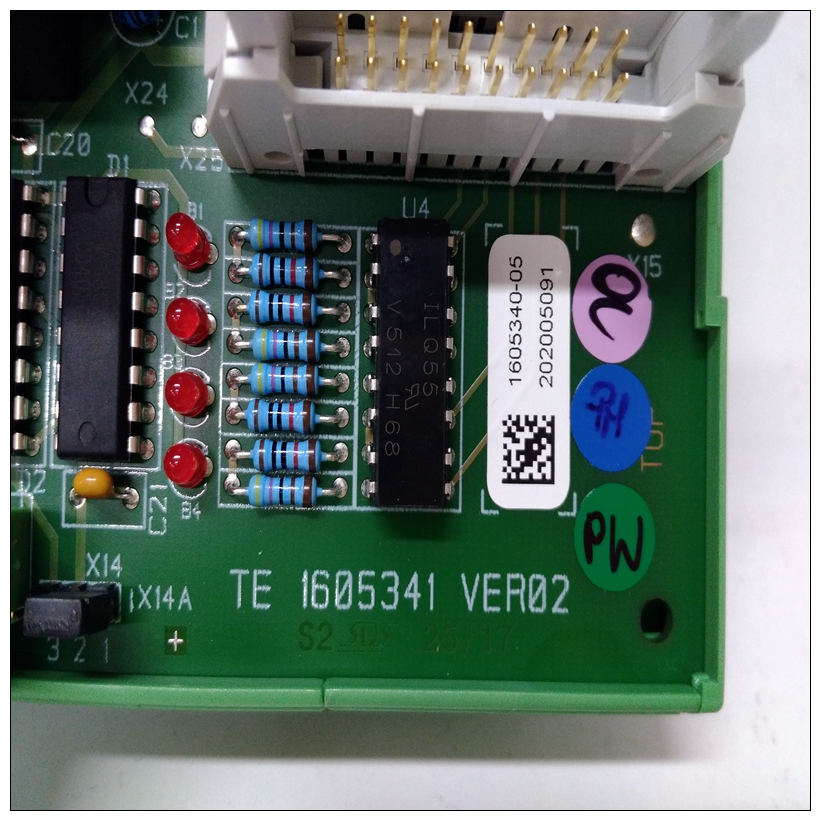

TRUMPF TE 1605341 VER02模块,TE 1605341 VER02参数说明
如果一个称重传感器出现故障，则更改为单侧测量
如果一个称重传感器出现故障，则可以从标准辊改为单侧测量。
关于称重传感器连接，请参考附录B、C、D、E、F或G中的电缆图安装中使用的称重传感器类型。
根据出现故障的称重传感器，执行以下操作：称重传感器A故障：将称重传感器A从张力电子装置上断开。
在X1:3和X1:4之间连接称重传感器励磁电路的短路线。
称重传感器B故障：将称重传感器B从张力电子装置上断开。
TRUMPF TE 1605341 VER02模块在X1:7和X1:8之间连接称重传感器励磁电路的短路线。
更改称重传感器连接后，张力电子设备中的一个参数设置必须更改。
使用下面的菜单将StandardRoll更改为单侧A或单侧B。9更改称重传感器开始工作前，请阅读第一章引言中的安全说明。
对于配有延长电缆和连接器的称重传感器：断开称重传感器的连接电缆，并保护连接电缆污垢和损坏。
对于配有固定电缆的称重传感器：断开张力电子设备或接线盒中的称重传感器连接并保护松动的电缆末端有污垢和损坏。
在松开和拆除旧称重传感器之前，对其进行清洁。
松开并拆除旧称重传感器。松开旧称重传感器上的转接板并将其拆下。
清洁支撑结构、转接板和其他安装表面。
Changing to Single Side Measurement If One Load Cell Is Faulty
If one load cell is faulty it is possible to change from Standard Roll to Single Side Measurement.
For load cell connections, please refer to cable diagrams in Appendix B, C, D, E, F or G for the
load cell type used in the installation.
Depending on which load cell that is faulty, do the following:
Load cell A is faulty:
1. Disconnect load cell A from the Tension Electronics.
2. Connect a shorting wire for the load cell excitation circuit between X1:3 and X1:4.
Load cell B is faulty:
1. Disconnect load cell B from the Tension Electronics.
2. Connect a shorting wire for the load cell excitation circuit between X1:7 and X1:8.
After having changed the load cell connections, one parameter setting in the Tension Electronics
must be changed.
Use the menu below to change from StandardRoll to Single Side A or Single Side B.9 Changing Load Cells
1. Before starting work, read the safety instructions stated in Chapter 1 Introduction.
2. For load cells equipped with an extension cable and connector:
Disconnect the connection cable from the load cell and protect the connection cable from
dirt and damage.
For load cells equipped with a fixed cable:
Disconnect the load cell connection in the tension electronics or junction box and protect
the loose cable ends from dirt and damage.
3. Clean the old load cell before it is unfastened and removed.
4. Unfasten and remove the old load cell.
5. Unfasten and remove the adapter plates from the old load cell.
6. Clean the support structure, adapter plates and other mounting surfaces.
7. For mounting instructions for the new load cell, see:
