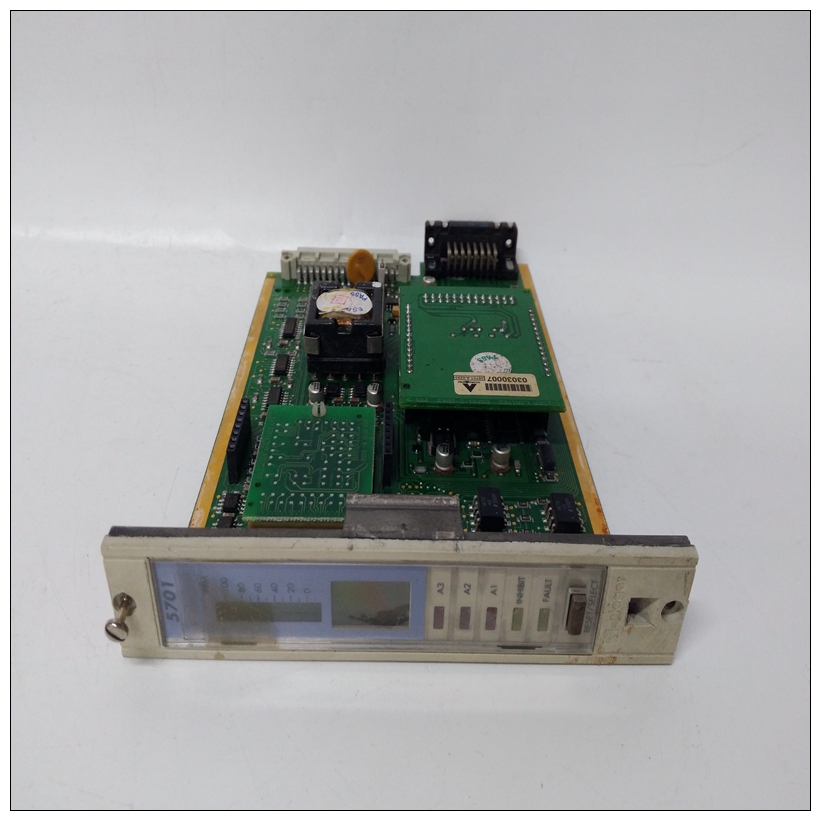

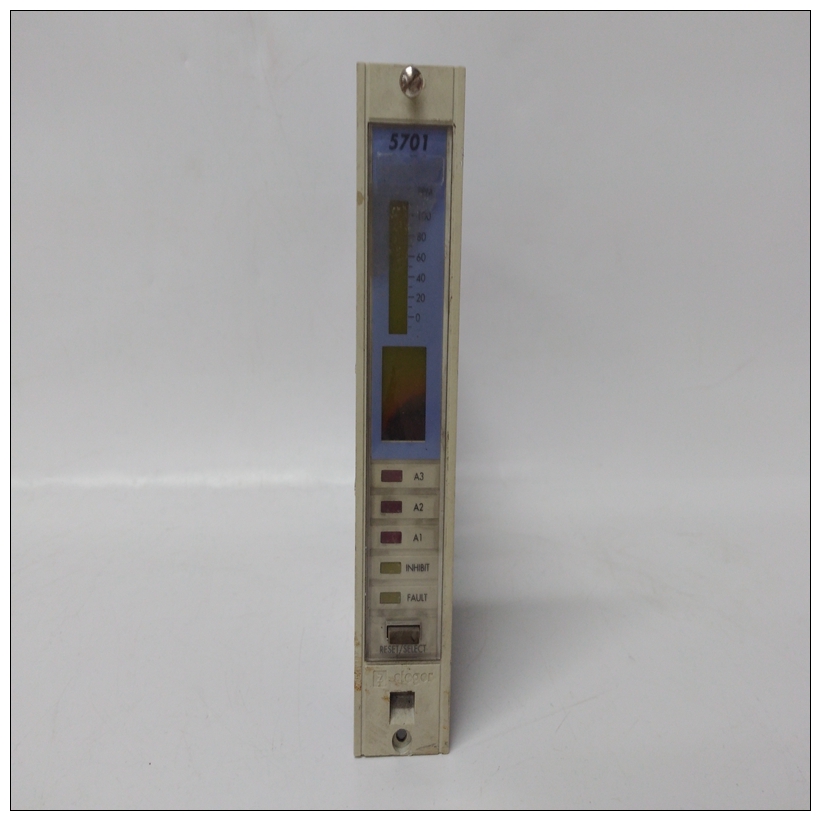

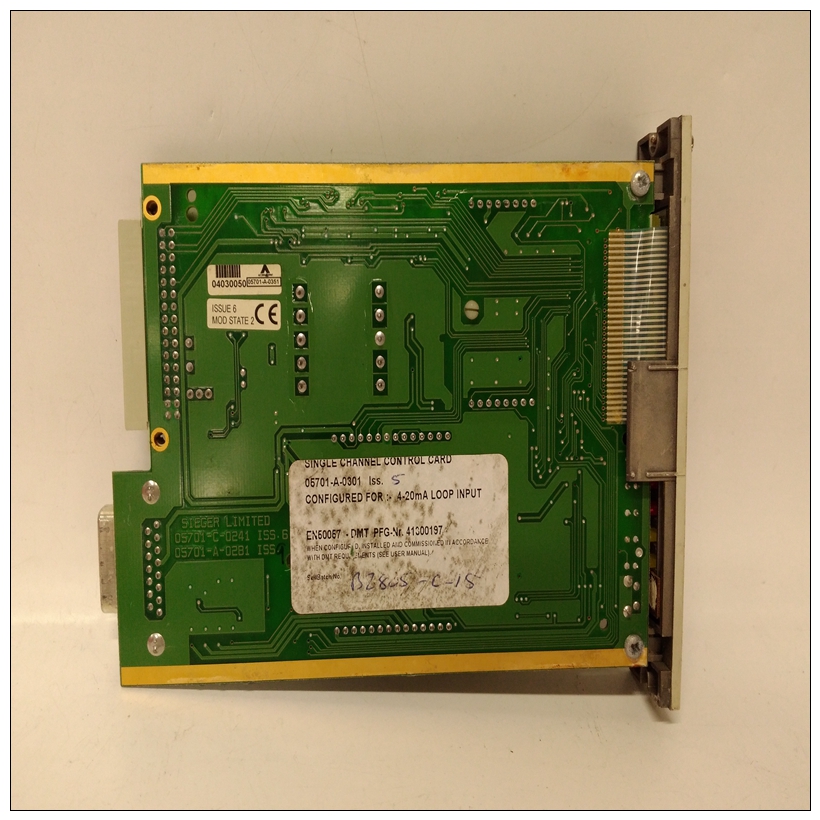

HONEYWELL 05701-A-0301控制卡件,05701-A-0301实验数据
为了桥接更长距离并绕过EMC干扰，使用光纤传输还规定了导体（玻璃或塑料）。
标准总线插头连接器可用于光纤导体传输。
这些连接器将RS 485信号转换为光纤导体信号，反之亦然。（OLP=光纤链路插头）。
此外，中继器可用于处理此信号转换。这为您提供了在中的两种传输技术之间切换的选项如有必要，一个系统。
一个Profibus系统最多可连接126个站点。
HONEYWELL 05701-A-0301控制卡件为了能够在公交车上处理这么多的参与者，必须对公交车系统进行划分分为单独的段，每个段最多包含32个站。
这些区段由中继器连接。通过Profibus处理测量数据
两个腹板张力测量值通过Profibus传输：
•值1与“电压输出”具有相同的阶跃响应时间
•值2与“电流输出”具有相同的阶跃响应时间。
“电压输出”和“电流输出”的缩放不影响测量值通过Profibus传输。
如果已执行零位设置，则零位设置值通过Profibus传输。
有关Profibus测量值的缩放，请参见第3.13.5.2节。
每个测量值都有16位2补码表示（整数16）。
3.13.5.1其他菜单
使用此菜单缩放Profibus测量值
To bridge longer distances and bypass EMC interference, transmission with optical fiber
conductors (glass or plastic) is also specified.
Standard bus plug connectors are available for transmission with optical fiber conductors.
These connectors convert RS 485 signals to optical fiber conductor signals and vice versa.
(OLP = optical link plug).
In addition, repeaters are available to handle this signal conversion.
This gives you the option of switching between the two transmission techniques within
one system if necessary.
You can connect up to 126 stations to one Profibus system.
To be able to handle this number of participants on the bus, the bus system must be divided
into individual segments, containing maximum 32 stations each.
These segments are linked by repeaters.Handling of Measurement Data through Profibus
Two web tension measurement values are transferred through Profibus:
• Value 1 has the same step response time as "voltage output"
• Value 2 has the same step response time as "current output".
The scaling of "voltage output" and "current output" does not affect the measurement values
transferred through Profibus.
If zero set has been performed, the zero set values are transferred through Profibus.
For scaling of Profibus measurement values, see Section 3.13.5.2.
Each measurement value has 16 bit, 2-complement representation (Integer 16).
3.13.5.1 Miscellaneous Meny
Use this menu for scaling Profibus measuring values
