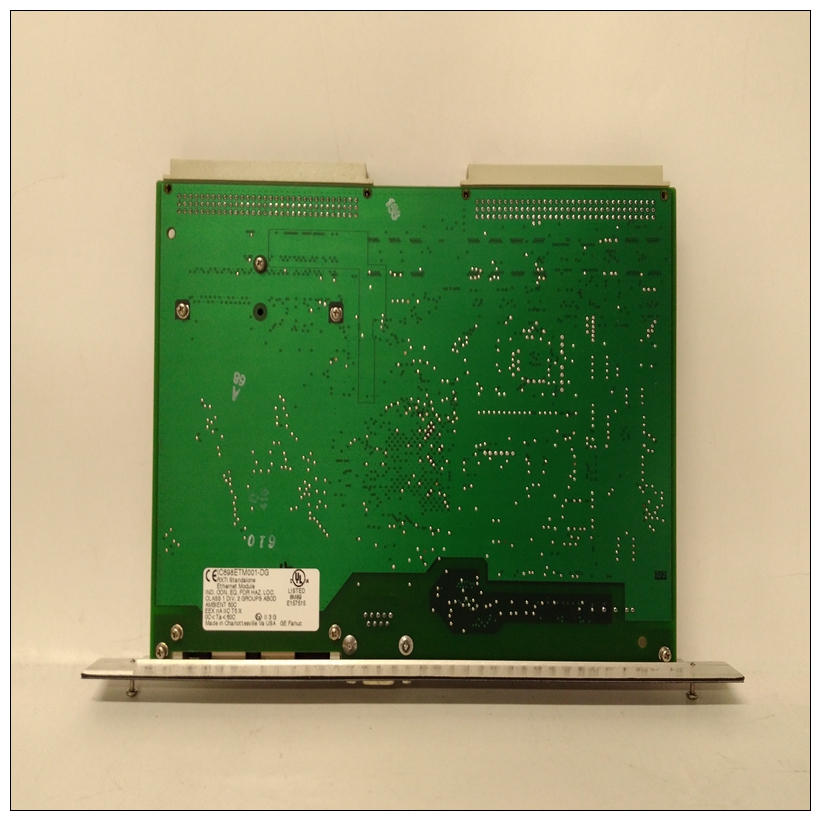

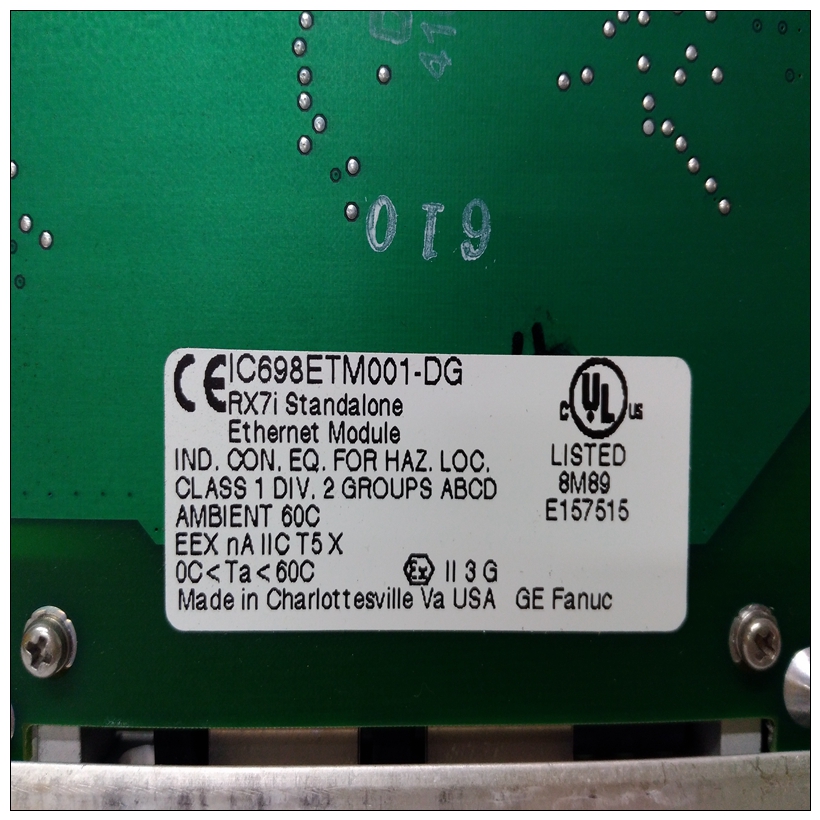

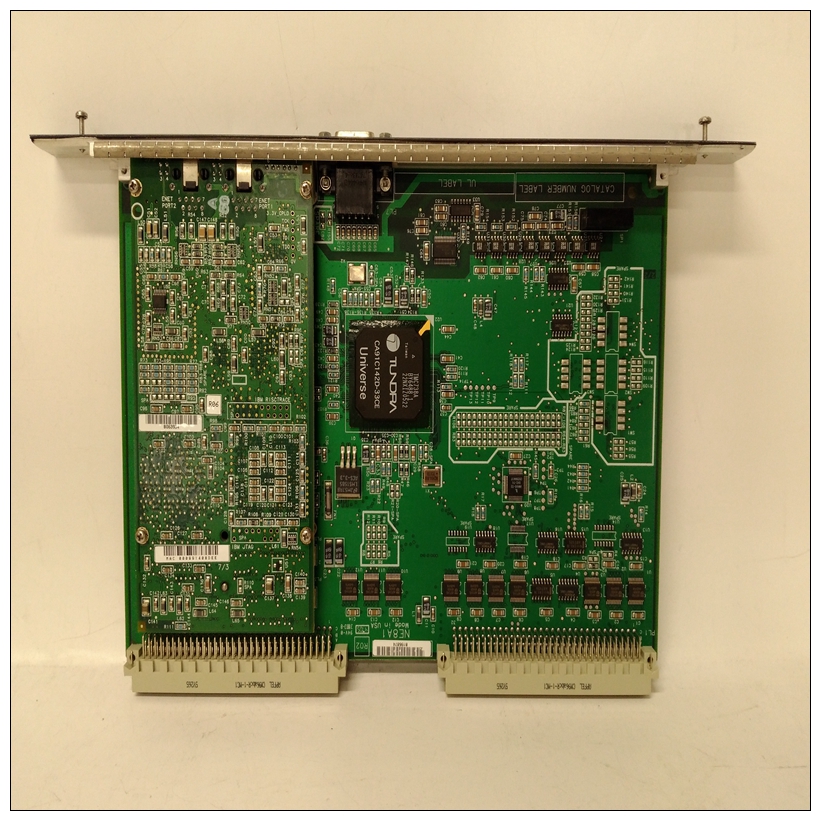

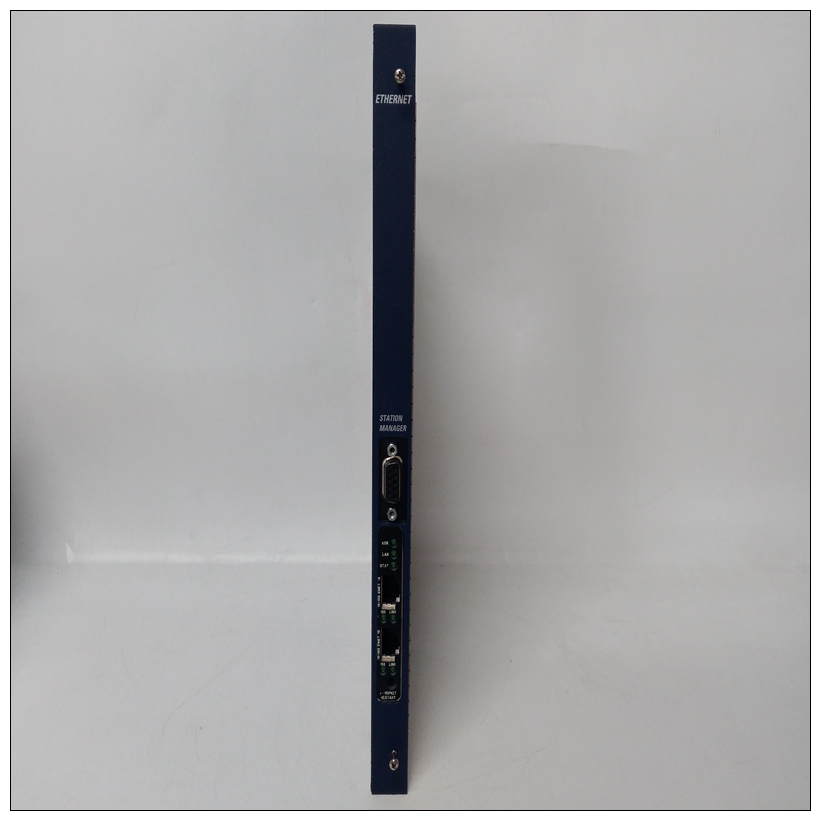

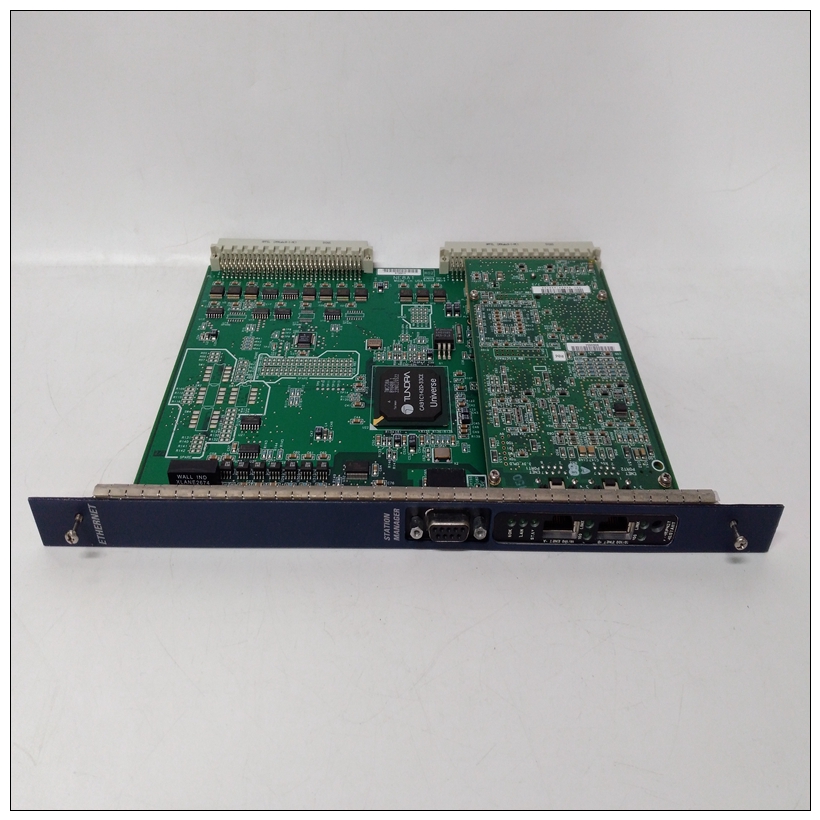

IC698ETM001燃机卡件,GE使用进展
重新配置后仍将保持脱机状态。为了使自动运行生效
SST-PB3-CLX-RLL必须复位。这可以通过向发送重置消息来完成进入模块信息选项卡，单击模块重置按钮，然后选择“确定”以显示警告消息。自动运行时，如果使用SST-PB3-CLX-RLL
在SST Profibus配置工具中脱机时，必须将SST-PB3-CLX-RLL放回原位由用户联机。这可以通过在SST Profibus中发出在线命令来完成配置工具（右键单击Master并选择online）。
IC698ETM001燃机卡件Legacy\u ID\u 0876：如果希望模块使用Legacy ID 0x0876，请启用此选项而不是在从机或主从模式下运行时的0xOC44。您必须使用更正与此从属ID一起使用的从属GSD文件。使用从属GSD文件ssti0876。ID的gse0x0876和从属GSD文件ssti0c44。ID为0x0C44的gse。
输入大小：这是从站接收数据的长度（大写）。有效输入大小为1-122。输出大小：这是从站传输数据的长度（大写）。有效输出大小为1-122。输入偏移量：指定CLX输入文件中的字偏移量，其中从Rx数据应映射。输入偏移范围为2到249。实际标记偏移量将是偏移量
2. 默认情况下，输入数据从标记Local:Slot开始。PROFIBUSDATA[0]。
如果将模块配置为主模块和从模块，请确保偏移不会与重叠在主配置中配置的偏移量（在SST Profibus配置中创建工具）。
输出偏移量：指定CLX输出文件中的字偏移量，其中从Tx数据应映射。输出偏移范围为2到247。实际标记偏移量将是偏移量
2. 默认情况下，输出从标记Local:Slot开始。ProfibusDataOut[0]。
如果将模块配置为主模块和从模块，请确保偏移不会与重叠在主配置中配置的偏移量（在SST Profibus配置中创建工具）。
地址：–这是为从站配置的本地站号。有效范围为1-
125、如果模块配置为主模块和从模块，则主模块使用的站地址也用于从属地址，此字段将被忽略。波特率：这是波特率，可以设置为这些波特率中的任何一个（9K6、19K2、，93K75、187K5、500K、1M5、3M、6M、12M、31k25、45k45）。这可为DP从机设置仅限操作。如果配置了主从设备，则忽略此字段，波特率使用DP主机上的配置（使用SST Profibus配置工具）。
will still remain offline after being reconfigured. In order for the Auto-Run to take effect, the
SST-PB3-CLX-RLL must be reset. This can be done by sending a RESET message to the
module by going to the Module Info tab and clicking on module Reset button and then
selecting OK to warning message. When in AutoRun, if the SST-PB3-CLX-RLL is taken
offline in the SST Profibus Configuration Tool, the SST-PB3-CLX-RLL must be put back
online by the user. This can be done by issuing the online command in the SST Profibus
Configuration Tool (Right-click on Master and select online).
Legacy_ID_0876: Enable this option if you want the module to use legacy ID 0x0876
instead of 0xOC44 when it’s operating in Slave or Master and Slave mode. You must use the
correct slave GSD file that goes with this Slave ID. Use slave GSD file ssti0876.gse for ID
0x0876 and slave GSD file ssti0c44.gse for ID 0x0C44.
Slave Parameters
Input Size: This is the length of slave receive data in Words. Valid input size is 1- 122.
Output Size: This is the length of slave transmit data in Words. Valid output size is 1- 122.
Input Offset: Specifies the word offset into the CLX input file where the slave Rx data
should be mapped. The input offset range is 2 to 249. The actual tag offset will be the offset
– 2. By default, the input data begins at tag Local:Slot.ProfibusDataIn[0].
If configuring the module as a Master and Slave, make sure offsets do not overlap with
offsets configured in your master configuration (created in SST Profibus Configuration
Tool).
Output Offset: Specifies the word offset into the CLX output file where the slave Tx data
should be mapped. The output offset range is 2 to 247. The actual tag offset will be the offset
– 2. By default, the output begins at tag Local:Slot.ProfibusDataOut[0].
If configuring the module as a Master and Slave, make sure offsets do not overlap with
offsets configured in your master configuration (created in SST Profibus Configuration
Tool).
Address: – This is the local station number configured for the slave. The valid range is 1-
125. If the module is configured as Master and Slave, the station address used for the Master
is also used for the slave address and this field is ignored.
Baud: This is the Baud rate and can be set to any one of these baud rates (9K6, 19K2,
93K75, 187K5, 500K, 1M5, 3M, 6M, 12M, 31k25, 45k45). This is settable for DP Slave
operation only. If Master-Slave is configured, this field is ignored and the baud rate
configured on DP Master (using SST Profibus Configuration Tool) is used.
