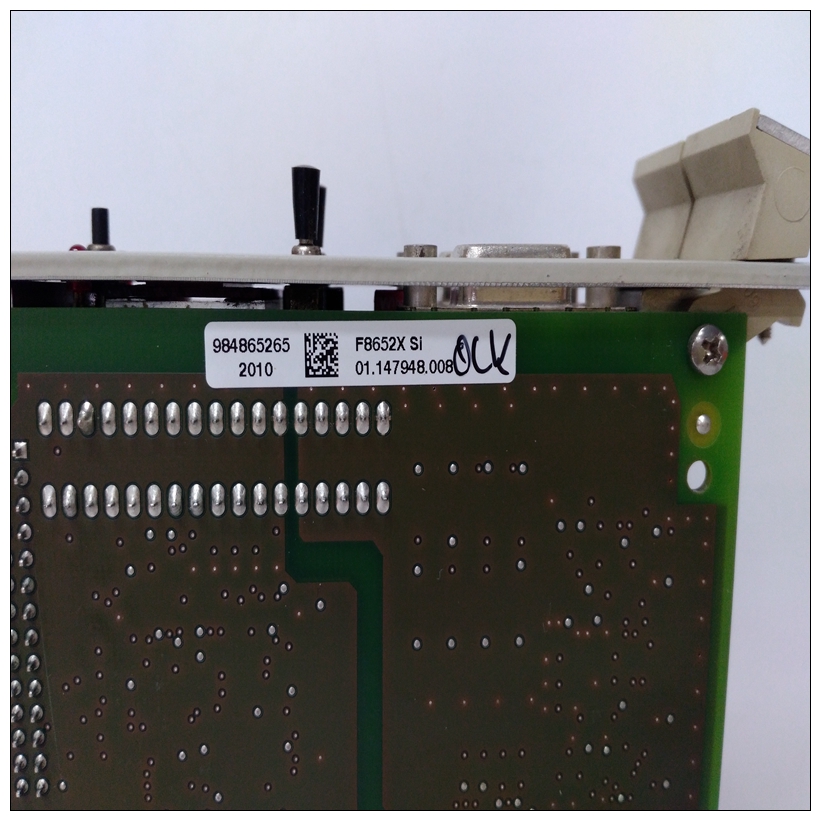

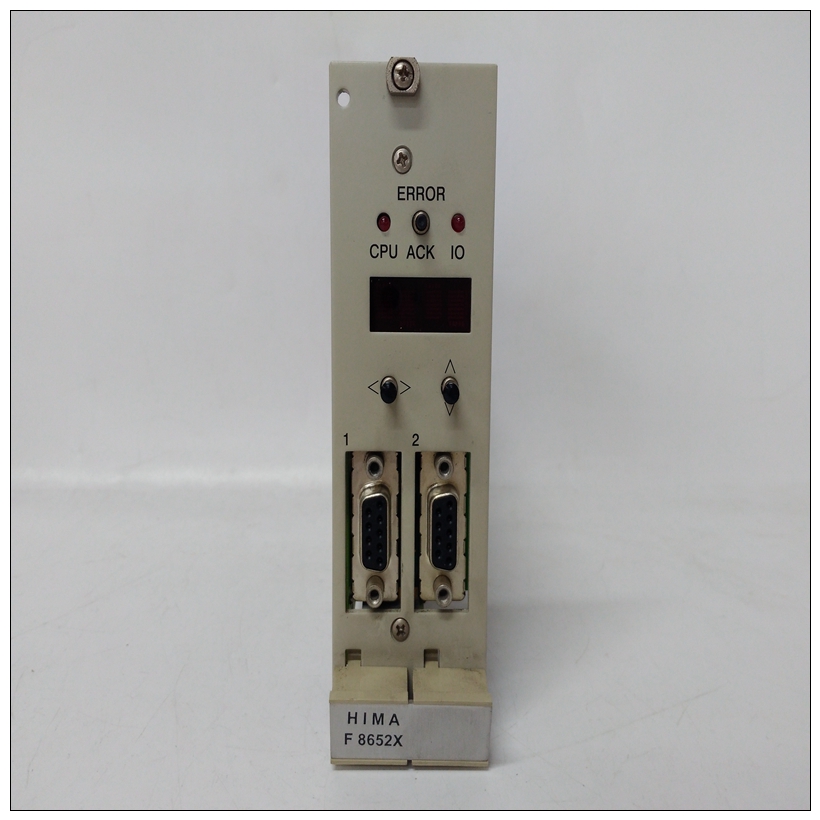

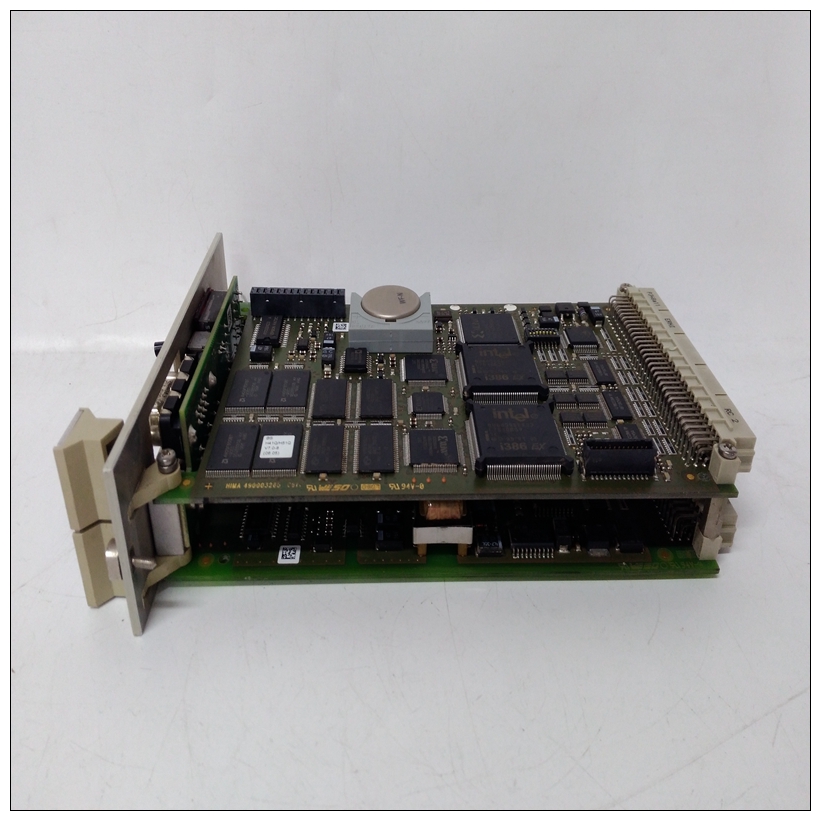

HIMA F8652X处理器模块,F8652X产品尺寸
输入/输出表添加/修改
如果您使用AOP将模块配置为从模块，则不必手动编辑CLX配置表。编辑CLX有在使用通用1756模块时才需要配置表
如果配置了从机，则从机I/O始终映射到主机之后的CLX I/O表中数据默认情况下，从属数据将在主数据之后立即映射；然而“硬地址”可以在CLX配置文件中指定。这增加了指定
HIMA F8652X处理器模块在输入/输出文件中启动从属数据地址。这可用于在主控和从属数据。这样，如果主网络配置更改，则不会影响CLX输入/输出文件中的从属数据。如果未配置主服务器，则从服务器的默认映射数据是CLX输入/输出表的开头，主数据通常从这里开始。再说一次，这个可以通过在CLX配置文件中指定“硬地址”来更改默认值。
接收的数据是从远程主机接收的数据。此数据映射到CLX输入桌子传输数据是扫描仪模块发送给远程主机的数据。此数据为映射到CLX输出表。
10.2.3配置表添加CLX config表格将用于配置从属功能。如果使用罗克韦尔的AOP要进行配置，请参阅RSLogix 5000中的配置CLX从机一节。奴隶表条目遵循主服务器使用的配置区域。这样可以在中保持向后兼容性配置文件。
从属配置文件条目从10H（16D）开始。
I/O Table Additions/Modifications
Note
If you are using AOP to configure module as a slave, you do not have to
edit the CLX configuration table manually. Editing the CLX
configuration table is only required when using Generic 1756 Module
Profile.
If the slave is configured, the slave I/O is always mapped into the CLX I/O table after the master
data. By default, the slave data will be mapped immediately following the master data; however,
"hard addresses" can be specified in the CLX config file. This adds the ability to specify the
starting slave data address in the I/O files. This can be used to leave a gap between master and
slave data. This way, if the master network configuration changes, it does not affect the offsets of
the slave data in the CLX I/O files. If the master is not configured, the default mapping of slave
data is the beginning of the CLX I/O tables where the master data usually starts. Again, this
default can be changed by assigning "hard addresses" in the CLX config file.
Received data is data received from the remote master. This data is mapped into the CLX input
table. Transmit data is data that the scanner module sends to the remote master. This data is
mapped into the CLX output table.
10.2.3 Config Table Additions
The CLX config table will be used to configure the slave functionality. If using Rockwell’s AOP
to do the configuration, see section Configuring the CLX Slave in RSLogix 5000. The slave
table entries follow the config area used by the master. This maintains backward compatibility in
the config file.
The slave config file entries start at 10H (16D).
