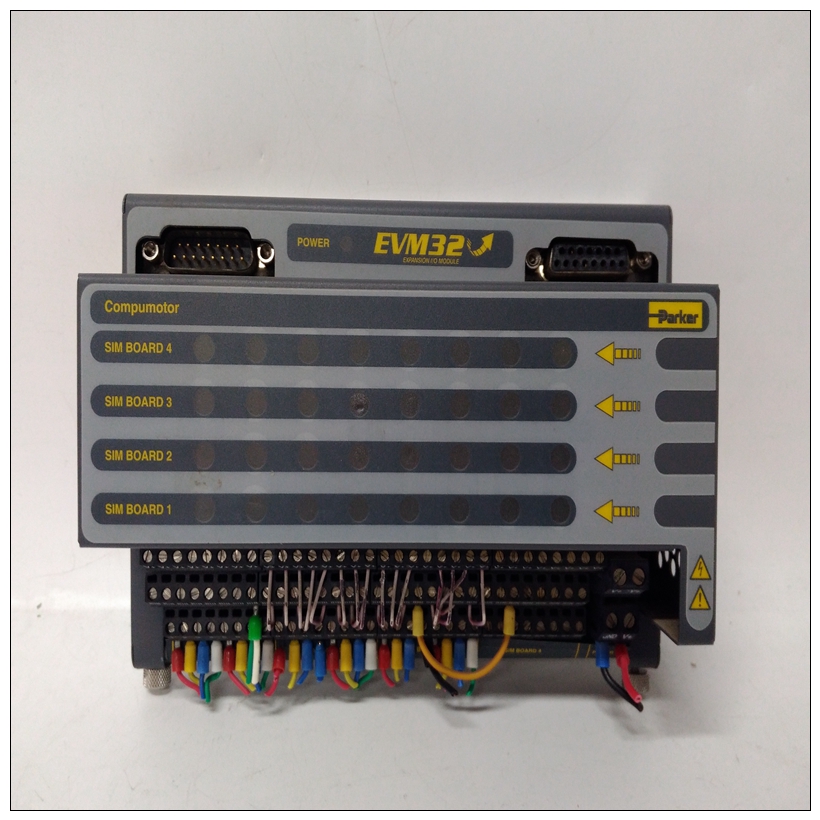

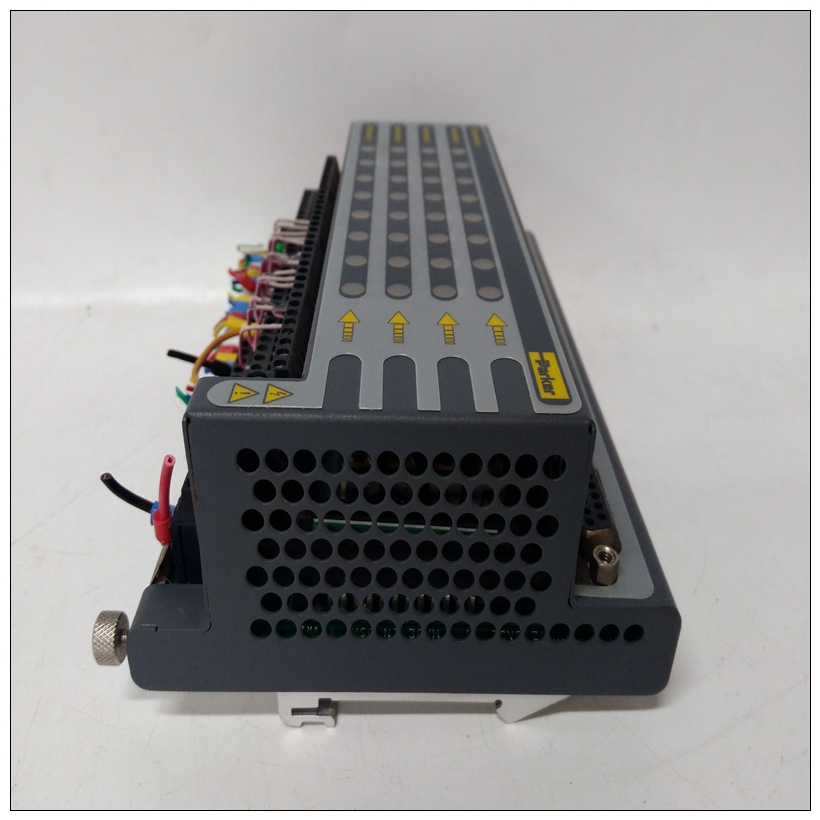

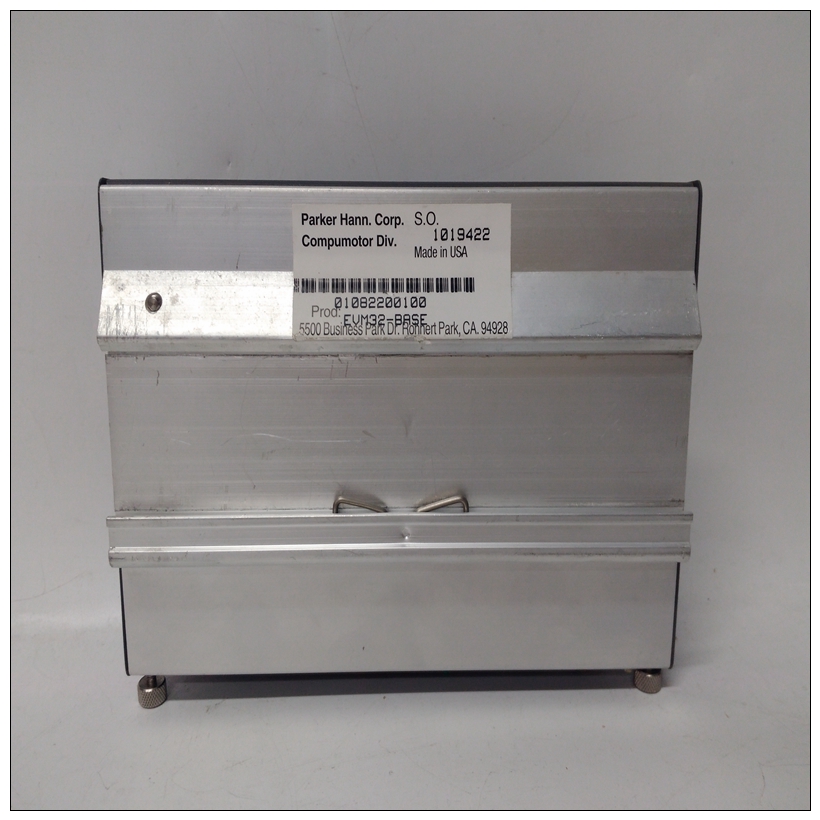

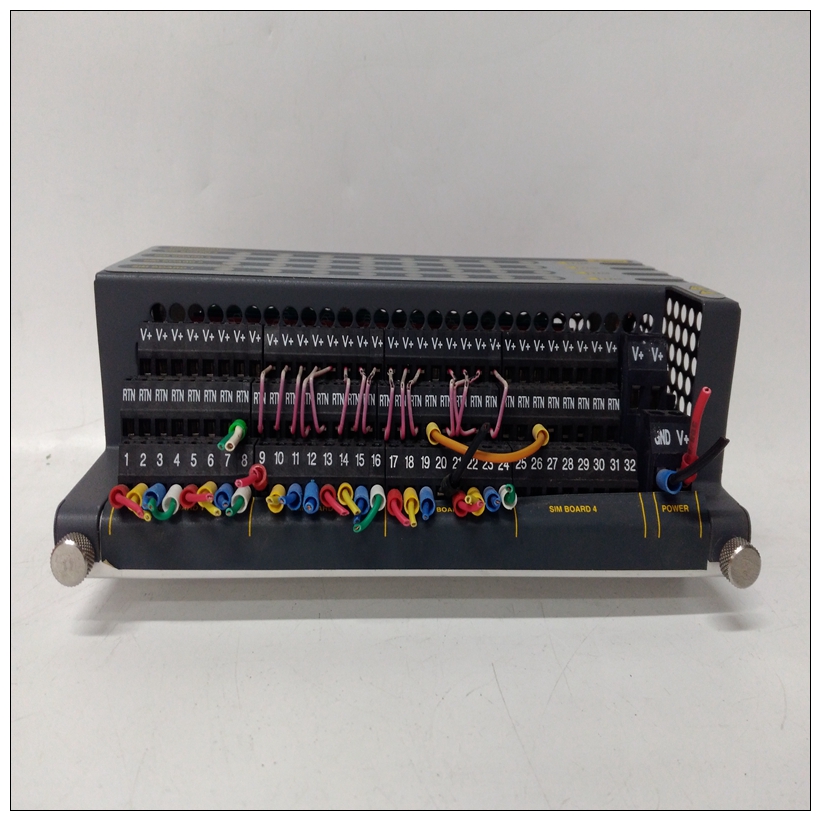

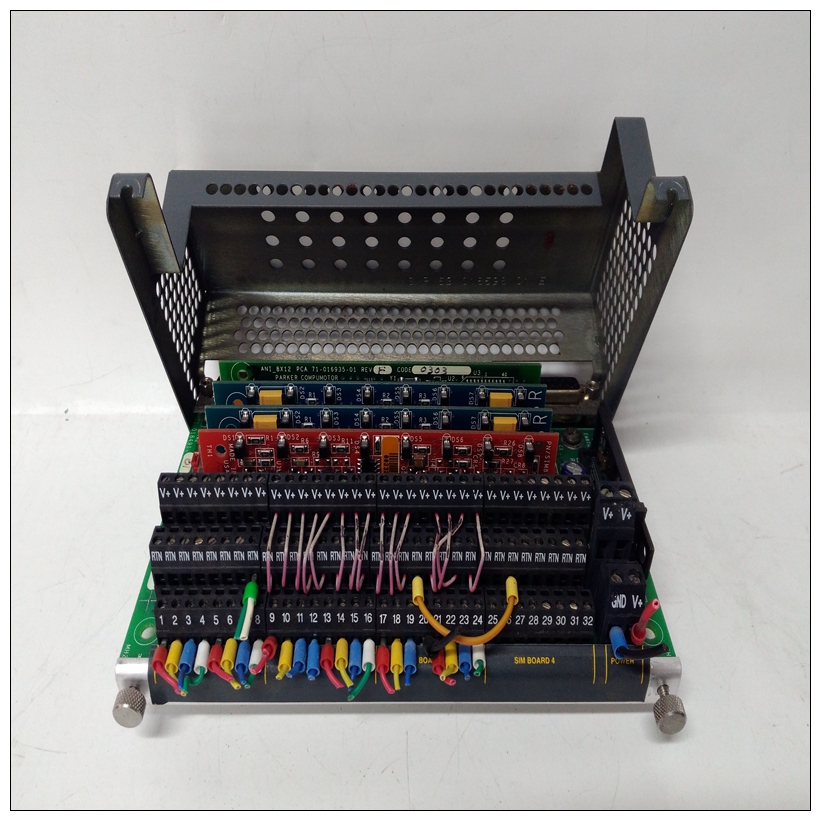

PARKER EVM32-BASE伺服模块,EVM32-BASE使用流程
通过PlantScape Control Builder配置
如果您使用的是PlantScape系统，请执行以下步骤来配置
SST-PB3-CLX-RLL扫描仪：
1、导航至“程序”>“PlantScape”，打开PlantScape Control Builder工程工具>控件生成器。
2、关闭显示的其中一个项目窗口。
3、选择CPM块。
4、从“工具”菜单中选择“加载内容”选项。
5、选择继续按钮。
PARKER EVM32-BASE伺服模块6、选择项目窗口底部的监控选项卡。
7、选择CEE。
8、从操作菜单中，选择激活。从子菜单中，选择此CEE及其10M和CM选项。
10、在“更改状态”对话框中选择“是”。此过程使处理器处于运行状态模式和SST-PB3-CLX-RLL扫描仪联机和运行模式。有关详细信息
有关信息，请参阅霍尼韦尔的PlantScape PROFIBUS实施指南。SST PROFIBUS配置工具窗口由一个主视图或网络视图和两个
窗格：PROFIBUS设备窗格（设备库）和在线浏览窗格（DP视图）。
这两个都是浮动窗格；拖放它们以将其移动到网络视图。
Configuring Through PlantScape Control Builder
If you are using the PlantScape System, perform the following steps to configure the
SST-PB3-CLX-RLL scanner:
1. Open the PlantScape Control Builder by navigating to Programs > PlantScape
Engineering Tools > Control Builder.
2. Close one of the project windows that displays.
3. Select CPM block.
4. Select the Load with Contents option from the Tools menu.
5. Select the Continue button.
6. Select the Monitoring tab located on the bottom of the Project window.
7. Select CEE.
8. From the Operate menu, select Activate.
9. From the sub-menu, select the This CEE and its 10M and CM's option.
10. Select YES in the Change State dialog box. This procedure places the processor in Run
mode and the SST-PB3-CLX-RLL scanner online and in Run mode. For detailed
information, refer to Honeywell's PlantScape PROFIBUS Implementation guide.The SST PROFIBUS Configuration Tool window consists of a main or Network view and two
panes: the PROFIBUS Devices pane (Device Library) and the Online Browse pane (DP view).
Both of these are floating panes; drag and drop them to move them anywhere inside the
Network view.
