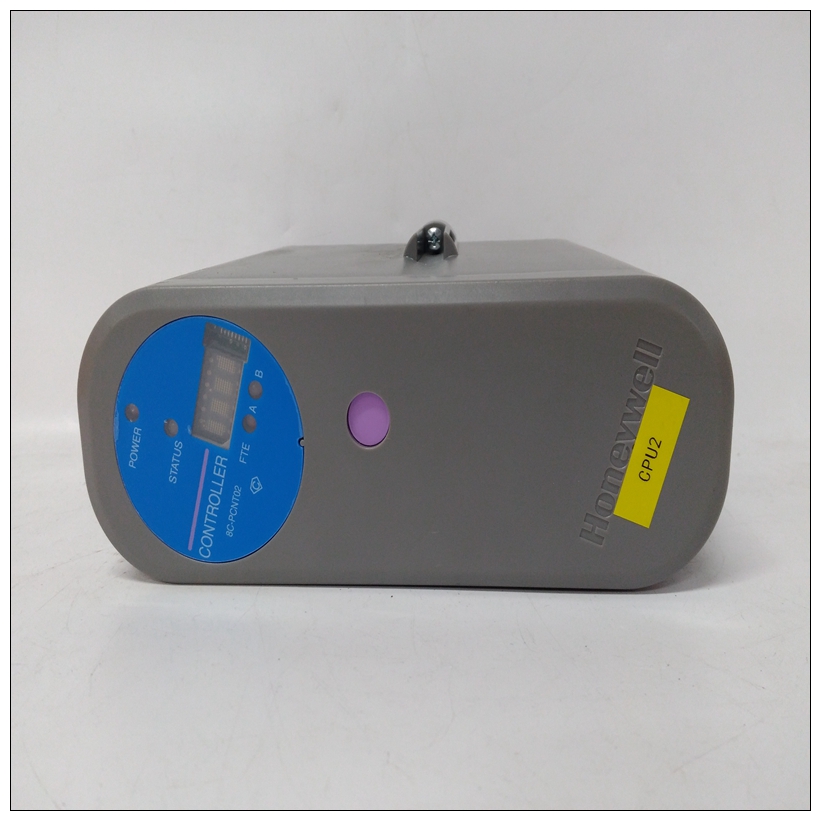

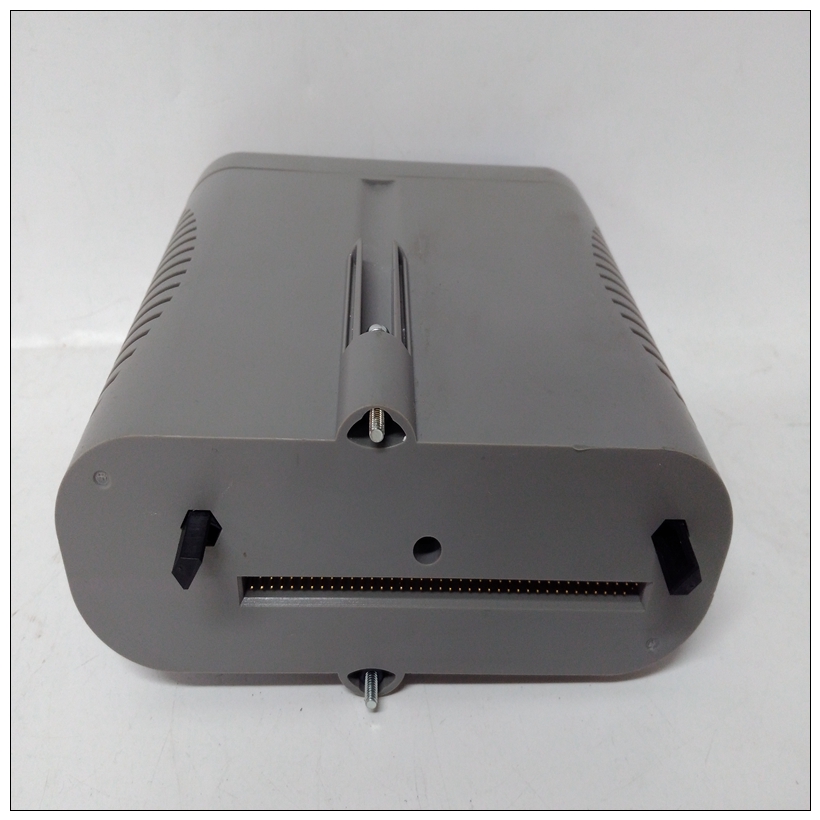

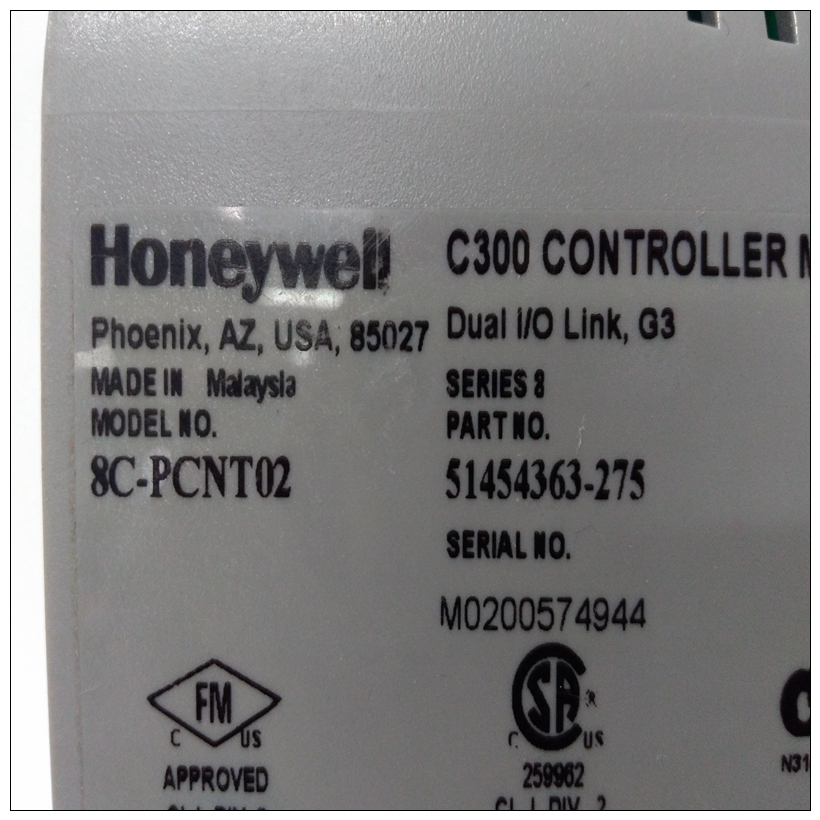

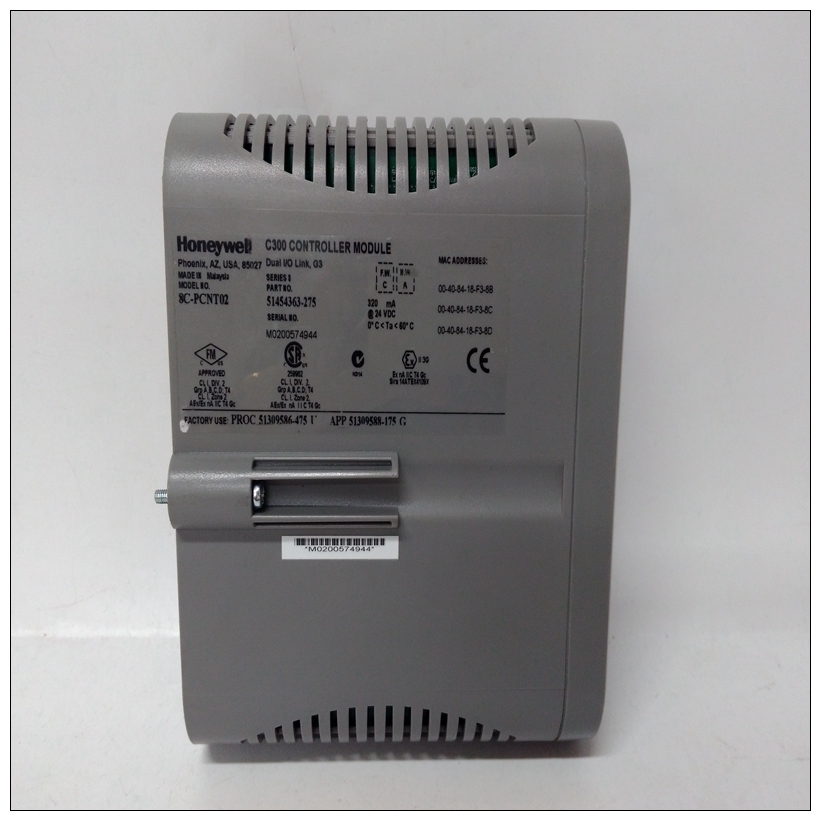

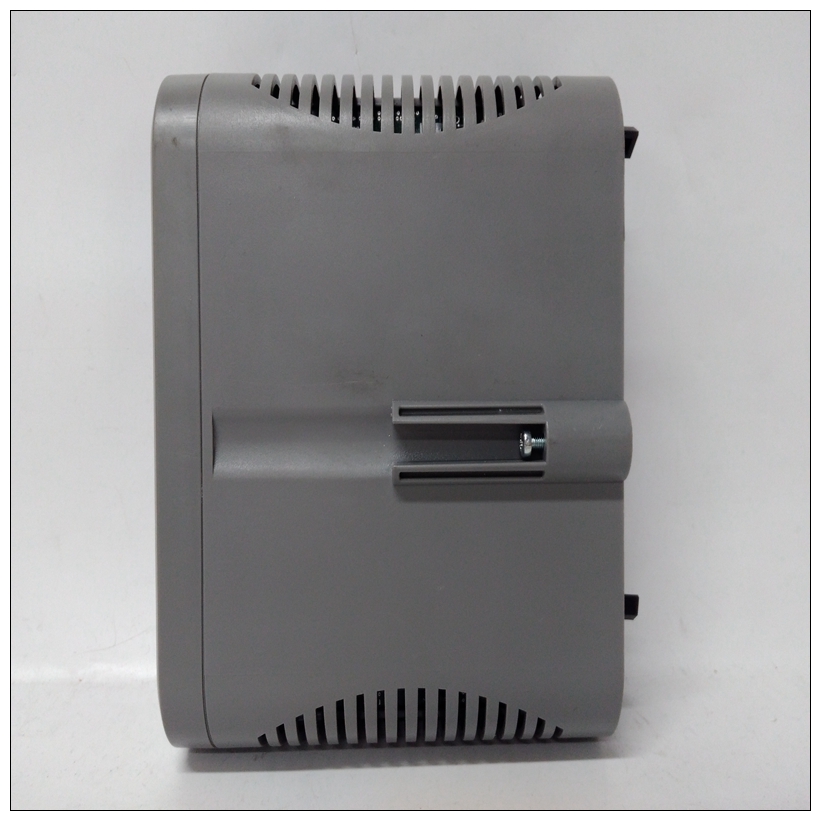

HONEYWELL 8C-PCNT02控制器,8C-PCNT02使用配置手册
电源设备
监控系统电压，以及测量的0 V/公共连接和监控输入和输出是电隔离的。
电源电压输入两个冗余二极管解耦输入，用于标称+24 V，公共0 V参考电压
电压输入UB+/UN+d2/z2公共参考0 V U− b2级烫发。电压范围19。。。31.2Vdc（IEC 654−2级DC 4）CSA：24Vdc；SELV LPS
24 V最大250 mA时的最大功耗为6 W
HONEYWELL 8C-PCNT02控制器监控系统电压内部电源所需的系统电压会持续监控过电压。
如果检测到欠电压，将生成错误消息。
传感器电源对于显示器的两个通道分离与电源电压，可与其他监视器并联运行，打开电路和短路保护，无反应。
传感器电源通道1传感器1− / 传感器1+b6/z6
传感器电源通道2传感器2− / 传感器2+b8/d6
电源电压26.75 V DC；公差±2%剩余纹波<20 mVss（标称电流20 mA时）最大电流35 mA最大短路−电路电流0 mA≤ 我做空了−环行≤ 5 mA；
断路和短路−电路验证
Power supply
The monitor system voltages, and thus the 0 V / common connections for the measurement
and monitoring inputs and outputs, are galvanically separated.
Supply voltage inputs Two redundant diode decoupled inputs for nominal
+24 V with common 0 V reference
Voltage input UB+ / UN+ d2 / z2
Common reference 0 V U−
b2
Perm. voltage range 19 ... 31.2Vdc (IEC 654−2 class DC 4)
CSA: 24Vdc; SELV LPS
Power consumption max. 6 W, at 24 V max. 250 mA
Monitor system voltage
The system voltages required for the internal supply are constantly monitored on overvoltage.
If undervoltage is detected an error message is generated.
Sensor supply
For both channels of the monitor
Separation Decoupled and galvanically separated from the
supply voltage,
can be operated in parallel with other monitors, open
circuit and short circuit proof, non reactive.
Sensor supply channel 1 SENS1− / SENS1+ b6/z6
Sensor supply channel 2 SENS2− / SENS2+ b8/d6
supply voltage 26.75 V DC; Tolerance ±2 %
Residual ripple < 20 mVss (at nominal current 20 mA)
Max. current 35 mA
Max. short−circuit current 0 mA ≤ I short−circuit ≤ 5 mA;
Open circuit and short−circuit proof
