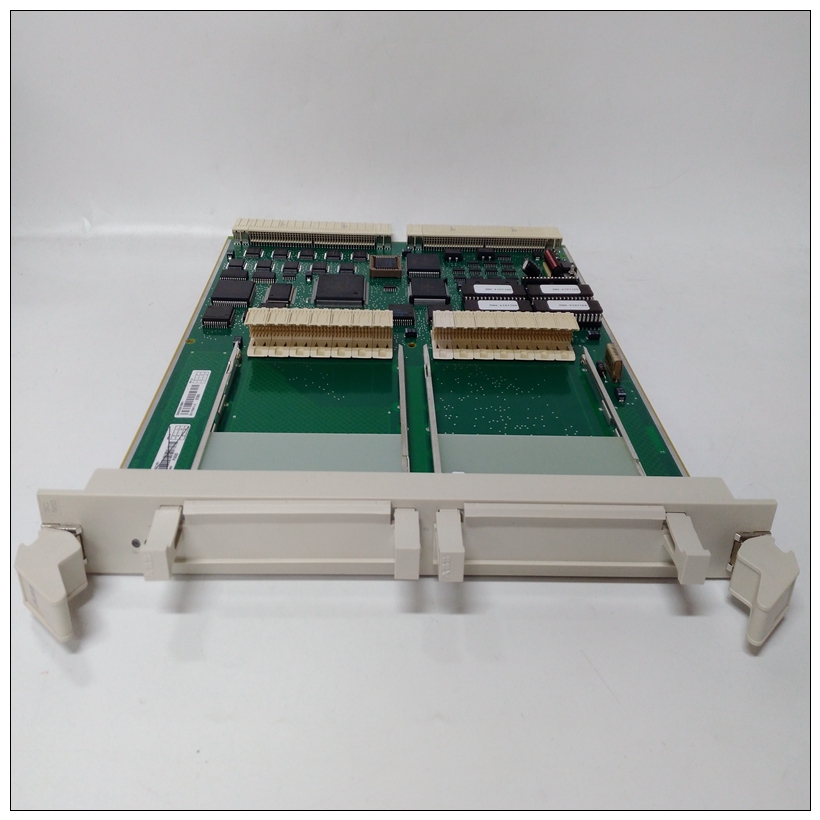

3BSE008105R1卡件,ABB使用配置手册SC560
极限值形成和报警两个报警通道，每个通道具有报警输出警报和危险，以及单独的限值调整如果特征值超过极限值参数，则报警。
（实际值>限制值）设置极限值根据测量操作的配置，通过设置参数，特征值形成、范围等。
设置条件极限值警报<极限值危险正在设置范围0。。。100%量程参数分辨率和再现性基于测量范围终值的1%滞后可配置，0。。。20%基于测量范围
3BSE008105R1卡件结束值滞后仅在实际值降低时有效价值报警延迟可配置为0（关），1,2,3,4,5秒。；对报警输出有效。
报警闭锁如果（C&P激活=是）或（电压或看门狗不正常）或（外部禁用=禁用）或（通道状态=错误和极限值抑制开*）或（通道状态=释放延迟）和通道监控效果=是如果不满足上述条件，则无阻塞*在配置中，指定是否通过通道阻止报警输出监测。
报警可视化通道1和通道2各有一个红色LED没有超出限值或报警此 路 不通LED熄灭警报，无危险LED以2 Hz的频率闪烁（脉冲/暂停1:1）
危险指示灯持续亮起
Limit value formation and alarms
Two alarm channels, each with an alarm output ALERT and DANGER, and separate limit value
adjustment. Alarming if the characteristic value exceeds the limit value parameters. (actual
value > limit value)
Setting the limit value
Through setting parameters, depending on the configuration for measurement operation,
characteristic value formation, range etc.
Setting condition Limit value ALERT < limit value DANGER
Setting range 0 ... 100 % of the measuring range parameters
Resolution and reproducibility 1 % based on the measuring range end value
Hysteresis Configurable, 0 ... 20 % based on the measuring range
end value
The hysteresis is only effective with decreasing actual
value
Alarm delay
Can be configured to 0 (off), 1,2,3,4,5 sec.; effective on the alarm outputs.
Alarm blocking
Blocking If (C&P active = yes) OR
(Voltage or watchdog not OK) OR
(Ext. disable = disable) OR
(Channel status = error and limit value
suppression on*) OR
(Channel status = release delayed) AND
Channel monitoring effect = yes
No blocking
If the above condition is not satisfied
* In the configuration it is specified whether the alarm outputs will be blocked through channel
monitoring.
Alarm visualization
Through one red LEDs each for channel 1 and channel 2
No limit value exceeded or alarm
blocked
LED off
ALERT, no DANGER LED flashes at 2 Hz (pulse/pause 1:1)
DANGER LED on continuously
