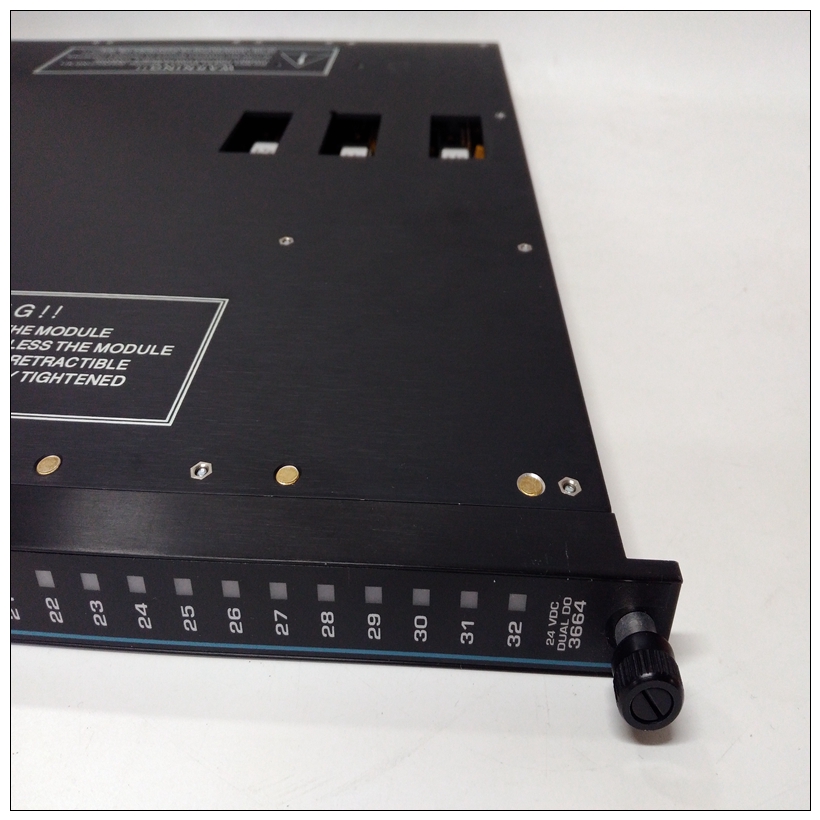

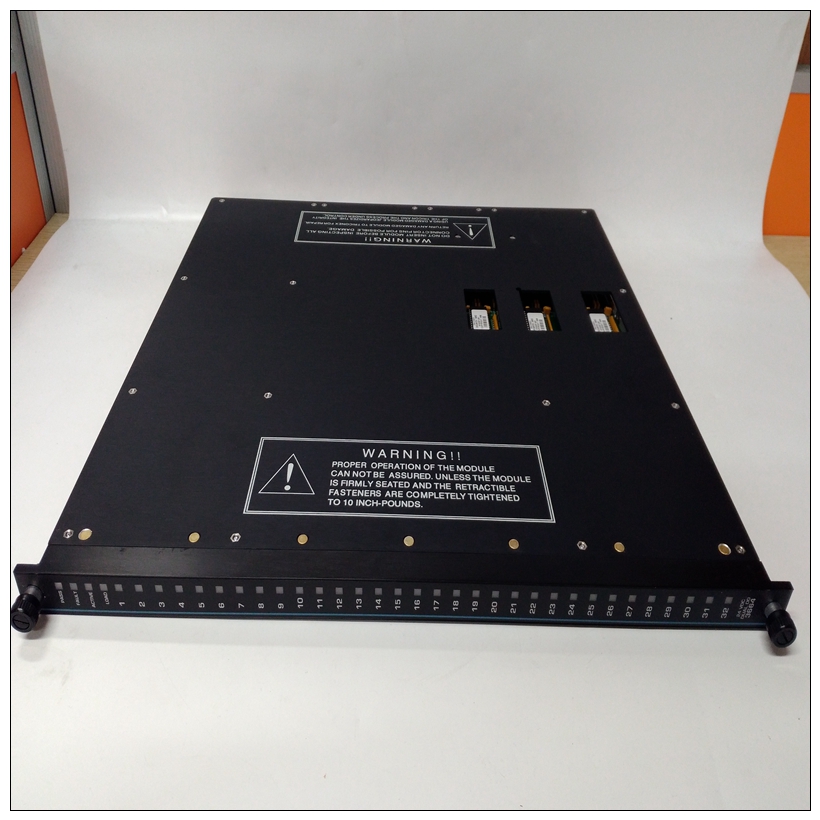

TRICONEX 3664安全系统卡件,TRICONEX 3664使用教程
该装置必须配备安全低压SELV LPS（C22.2 60950−1） 24V。这个操作所需的电压必须由单独的电源提供。
IMR系统应放置在合适的防火外壳中。
IMR系统在0°C至45°C的环境中进行评估。
必须提供足够的通风空间，以免热量积聚。通风设备所有方向的空间必须至少为1 RU（13/4英寸）。如果机架的环境温度高于45°C时，使用送风机、
TRICONEX 3664安全系统卡件冷却器或类似设备冷却此仪器。
在一个机柜中安装多个相互上方的IMR单元时，将冷却风扇机架安装在而不是通风空间之间。冷却风扇机架的必要规格
根据机柜的环境和坐着标准，因此无法定义
一般安装和安装19英寸机架或其他Intermas中准备好的3U插槽−兼容机柜，用于安装A6110监视器。插槽必须安装48−插针式插头连接器（DIN 41612，设计F 48 M）。下表列出了端号分配。RS 485总线操作需要在第一个和最后一个总线设备上安装电气终端。
这是用插头完成的−在控制器板上的跳线中。此图显示了位置跳投者中的一员。
This device must be supplied with safety low voltage SELV LPS (C22.2 60950−1) 24V. The
voltage required for operation must be drawn from a separate power supply.
The IMR system should be placed in a suitable fire enclosure.
The IMR system is evaluated for an ambient of 0°C to 45°C.
Adequate ventilation space has to be provided so that heat does not build up. The ventilation
space must be at least 1 RU (13/4 inch) in all directions. If the ambient temperature of the rack
rises above 45 °C, cool this instrument with a forced air fan, cooler, or similar.
When mounting several IMR units above each other in one cabinet, install cooling fan racks in
between instead of the ventilation space. The necessary specifications for cooling fan racks
result from the environmental and sitting criterions of the cabinet and thus cannot be defined
generallyInstallation and Mounting
A prepared 3U slot in a 19” rack, or other Intermas−compatible enclosure, is required for
mounting the A6110 monitor. The slot must be fitted with a 48−pin plug connector (DIN 41612,
design F 48 M). The pin assignment is listed in the following table.RS 485 bus operation requires an electrical terminator on the first and last bus device.
This is done with plug−in jumpers, that are on the controller board. The figure shows the position
of the jumpers.
