BENTLY 330100-90-00 前置器传感器
1.产 品 资 料 介 绍：
中文资料：
BENTLY 330100-90-00 前置器传感器是一款在工业自动化领域中广泛应用的设备。以下是关于该传感器的详细信息和特点：
- 产品概述：
- BENTLY 330100-90-00 前置器传感器是一款高性能的传感器，通常与电涡流位移传感器配合使用，用于测量和监测旋转设备的位移、振动等参数。
- 主要功能和特点：
- 测量原理：该前置器传感器通过高频电流产生高频磁场，磁场与旋转设备上的金属表面交互产生电涡流，从而改变原线圈的感抗。这种感抗的变化与探头顶部金属表面的间隙变化相关，因此可用于测量位移、振动等参数。
- 容错性：该传感器具有良好的容错性，电源端、公共端（信号地）、输出端任意接线错误不会损坏前置器，同时提供电源性错误保护和输出短路保护。
- 高频电缆安装：前置器至探头间的电缆为高频电缆，总长通常为9m或5m（用户订货时确定），电缆长度不应随意改变，以确保测量的准确性。电缆位置要求固定，也可加金属软管保护以防止损坏。
- 温度范围：在特定温度范围内，该传感器能够保持稳定的性能。例如，当探头温度范围在-35°C至+120°C，前置器和延伸电缆温度范围在0°C至+45°C时，传感器的输出信号保持在一定的误差范围内。
- 技术规格：
- 型号：330100-90-00
- 品牌：BENTLY
- 电源要求：根据具体应用和需求，电源规格可能有所不同。
- 输出信号：提供与测量参数相关的模拟或数字输出信号。
- 应用领域：
- BENTLY 330100-90-00 前置器传感器广泛应用于化工、石油、交通、印刷包装、纺织皮革等行业的旋转设备监测中，如电机、泵、风机等。通过实时监测设备的位移、振动等参数，可以预测和防止设备故障，提高设备的可靠性和运行效率。
- 注意事项：
- 在安装和使用过程中，应确保前置器传感器与探头之间的电缆连接正确且牢固，避免电缆扭折和任意加接。
- 前置器应安装在绝缘板上，确保与大地在电气上隔离，以减少干扰和保证测量的准确性。
- 在安装和使用过程中，应遵循相关安全规范和操作规程，确保人员和设备的安全。
综上所述，BENTLY 330100-90-00 前置器传感器是一款高性能、高可靠性的工业自动化监测设备，广泛应用于各种旋转设备的位移、振动等参数的测量和监测中。
英文资料
BENTLY 330100-90-00 Proximitor Sensor is a device widely used in the field of industrial automation. The following is detailed information and features about the sensor:
Product Overview:
BENTLY 330100-90-00 Proximitor Sensor is a high-performance sensor typically used in conjunction with eddy current displacement sensors to measure and monitor parameters such as displacement and vibration of rotating equipment.
Main functions and features:
Measurement principle: The preamplifier sensor generates a high-frequency magnetic field through high-frequency current, and the magnetic field interacts with the metal surface on the rotating equipment to generate eddy currents, thereby changing the inductance of the original coil. This kind of impedance change is related to the gap change on the top metal surface of the probe, and can be used to measure parameters such as displacement and vibration.
Fault tolerance: This sensor has good fault tolerance, and any wiring error in the power supply, common (signal ground), and output terminals will not damage the preamplifier. At the same time, it provides power error protection and output short circuit protection.
High frequency cable installation: The cable from the preamplifier to the probe is a high-frequency cable, with a total length of usually 9m or 5m (to be determined by the user when ordering). The cable length should not be changed arbitrarily to ensure measurement accuracy. The cable position needs to be fixed, and metal hoses can also be added for protection to prevent damage.
Temperature range: The sensor can maintain stable performance within a specific temperature range. For example, when the temperature range of the probe is between -35 ° C to+120 ° C, and the temperature range of the preamplifier and extension cable is between 0 ° C to+45 ° C, the output signal of the sensor remains within a certain error range.
Technical specifications:
Model: 330100-90-00
Brand: BENTLY
Power requirements: Power specifications may vary depending on specific applications and requirements.
Output signal: Provide analog or digital output signals related to measurement parameters.
Application field:
BENTLY 330100-90-00 preamplifier sensors are widely used in rotating equipment monitoring in industries such as chemical, petroleum, transportation, printing and packaging, textile and leather, such as motors, pumps, fans, etc. By monitoring the displacement, vibration and other parameters of the equipment in real-time, it is possible to predict and prevent equipment failures, improve the reliability and operational efficiency of the equipment.
Notes:
During installation and use, it should be ensured that the cable connection between the proximity sensor and the probe is correct and firm, avoiding cable twisting and arbitrary addition.
The preamplifier should be installed on an insulation board to ensure electrical isolation from the ground, in order to reduce interference and ensure measurement accuracy.
During installation and use, relevant safety regulations and operating procedures should be followed to ensure the safety of personnel and equipment.
In summary, BENTLY 330100-90-00 Proximitor Sensor is a high-performance and highly reliable industrial automation monitoring equipment widely used in the measurement and monitoring of displacement, vibration and other parameters of various rotating equipment.

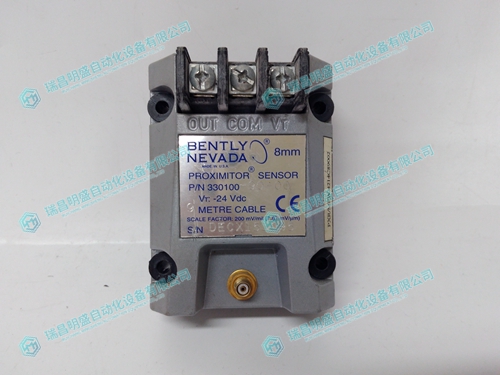

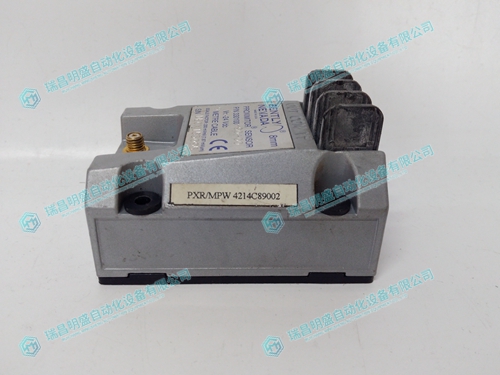

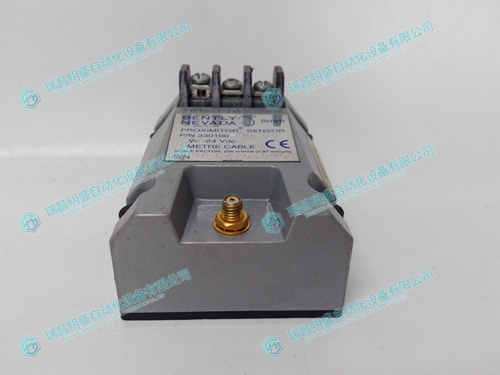

2.产 品 展 示
3.产 品 展 示
