IC697BEM731总线控制模块
1.产 品 资 料 介 绍：
中文资料：
IC697BEM731总线控制模块是一款由GE Fanuc系列90-70系列可编程逻辑控制器（PLC）提供的Genius总线控制器模块。以下是对该模块的详细解析：
1. 主要功能与特点
- 连接能力：IC697BEM731主要用于连接多达30个设备，并通过在同一总线上的所有已配置设备之间传递令牌来传输数据。
- 通道与端口：该模块具有1个通道，用于与同一总线上的设备接口；同时，还具备1个手持监视器（HHM）端口，用于使用MS DOS或Windows编程软件配置器功能将配置下载到模块。
2. 配置与设置
- 默认配置：模块在交付时，没有定义总线地址。配置软件将默认地址设置为153.6千波特标准和总线地址31。
- 地址修改：可以通过将有效配置下载到CPU来修改默认的总线地址。
- 通信距离与波特率：
- 当配置为153.6千波特（标准）时，通信总线的最大允许距离为2000英尺。
- 配置为153.6千波特（扩展）时，距离为3500英尺。
- 配置为76.8千波特时，距离为4500英尺。
- 配置为38.4千波特时，距离可达7500英尺。
注意：同一总线或网络上的所有设备必须配置相同的波特率，否则可能导致通信不稳定或无法建立通信。
3. 物理连接与总线电缆
- 总线电缆：GE发那科IC697BEM731总线控制器模用于建立网络的物理通信电缆是Belden 9182型电缆，GE目录号为IC660BLC001（15英寸）和IC660BLC003（带36英寸）。
- 总线端接器：总线端接器插头必须安装在总线两端，目录号为IC660BLM506（150欧姆）和IC660BLM508（75欧姆）。
4. 其他功能
- 全局数据传输：该总线控制器模块支持通过基于Windows的软件配置在CPU之间传输全局数据。
- 报警系统：可以增加IC697 PLC报警系统，用于在处理器数据表上报告带有时间戳的故障。
5. 应用场景
IC697BEM731总线控制模块广泛应用于工业自动化和控制系统，特别是在需要高效、稳定数据传输和管理的场合。
英文资料
The IC697BEM731 bus control module is a Genius bus controller module provided by the GE Fanuc series 90-70 series programmable logic controllers (PLCs). The following is a detailed analysis of the module:
1. Main functions and characteristics
Connection capability: IC697BEM731 is mainly used to connect up to 30 devices and transmit data by passing tokens between all configured devices on the same bus.
Channel and Port: This module has one channel for interface with devices on the same bus; At the same time, it also has one handheld monitor (HHM) port for downloading configurations to modules using MS DOS or Windows programming software configurator functionality.
2. Configuration and Settings
Default configuration: The module is delivered without a defined bus address. The configuration software sets the default address to 153.6 kilobaud standard and bus address 31.
Address modification: The default bus address can be modified by downloading valid configurations to the CPU.
Communication distance and baud rate:
When configured to 153.6 kilobaud (standard), the maximum allowable distance for the communication bus is 2000 feet.
When configured to 153.6 kilobaud (extended), the distance is 3500 feet.
When configured at 76.8 kilobaud, the distance is 4500 feet.
When configured at 38.4 kilobaud, the distance can reach 7500 feet.
Attention: All devices on the same bus or network must be configured with the same baud rate, otherwise it may cause communication instability or inability to establish communication.
3. Physical connections and bus cables
Bus cable: The physical communication cable used for establishing the network in the GE Fanuc IC697BEM731 bus controller module is Belden 9182 cable, with GE catalog numbers IC660BLC001 (15 inches) and IC660BLC003 (with 36 inches).
Bus Terminator: The bus terminator plug must be installed at both ends of the bus, catalog numbers IC660BLM506 (150 ohms) and IC660BLM508 (75 ohms).
4. Other functions
Global Data Transfer: This bus controller module supports the transfer of global data between CPUs through Windows based software configuration.
Alarm system: An IC697 PLC alarm system can be added to report faults with timestamps on the processor data table.
5. Application scenarios
The IC697BEM731 bus control module is widely used in industrial automation and control systems, especially in situations where efficient and stable data transmission and management are required.

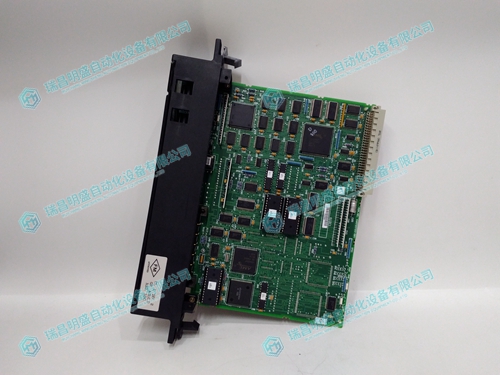

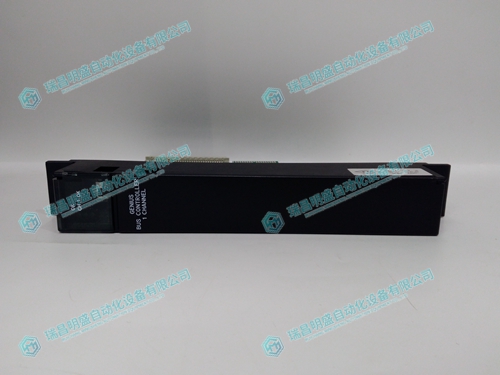

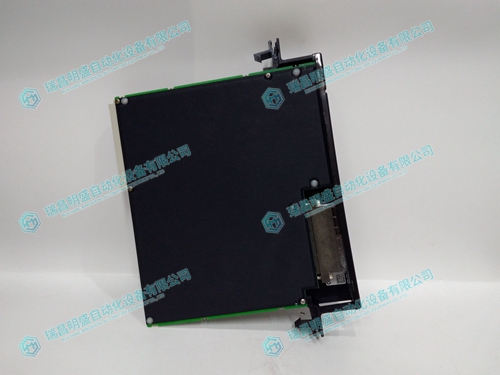

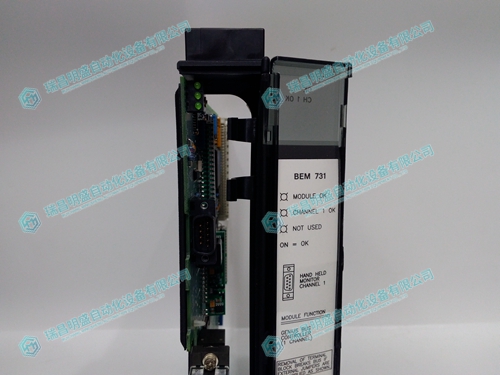

2.产 品 展 示
3.产 品 展 示
