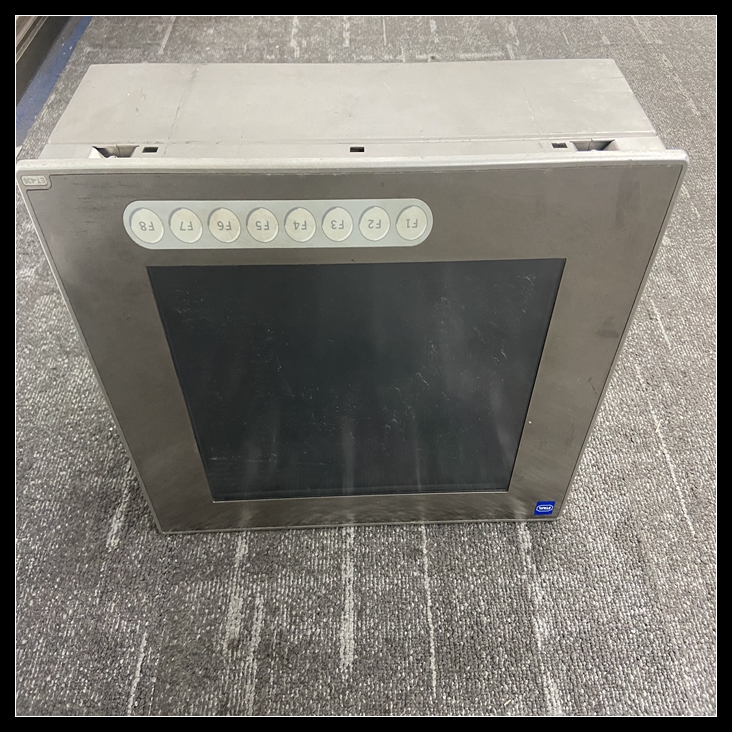

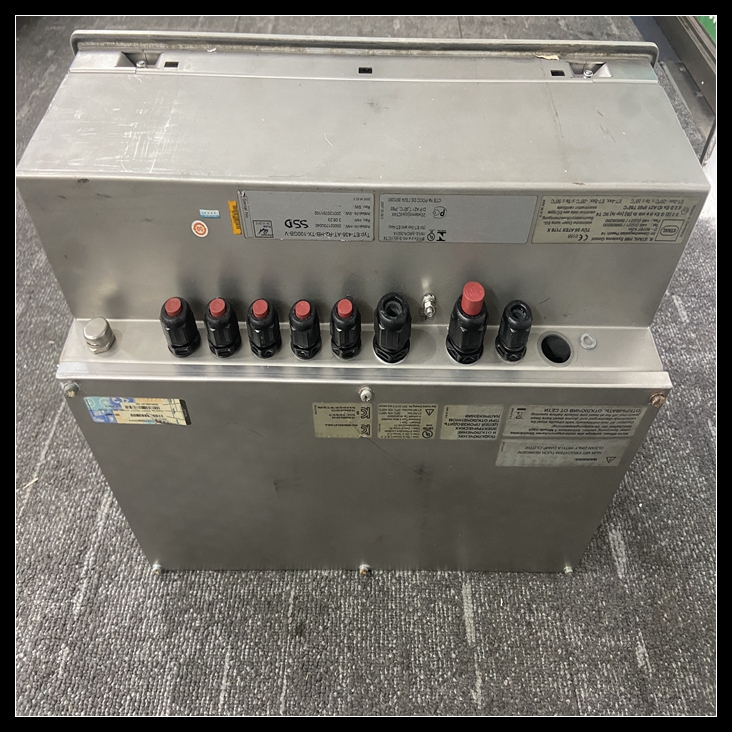

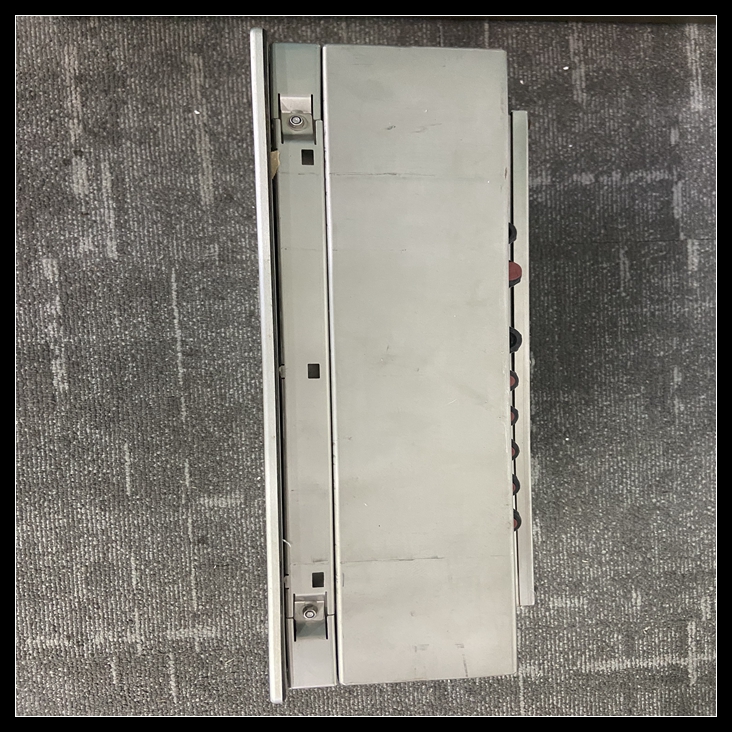

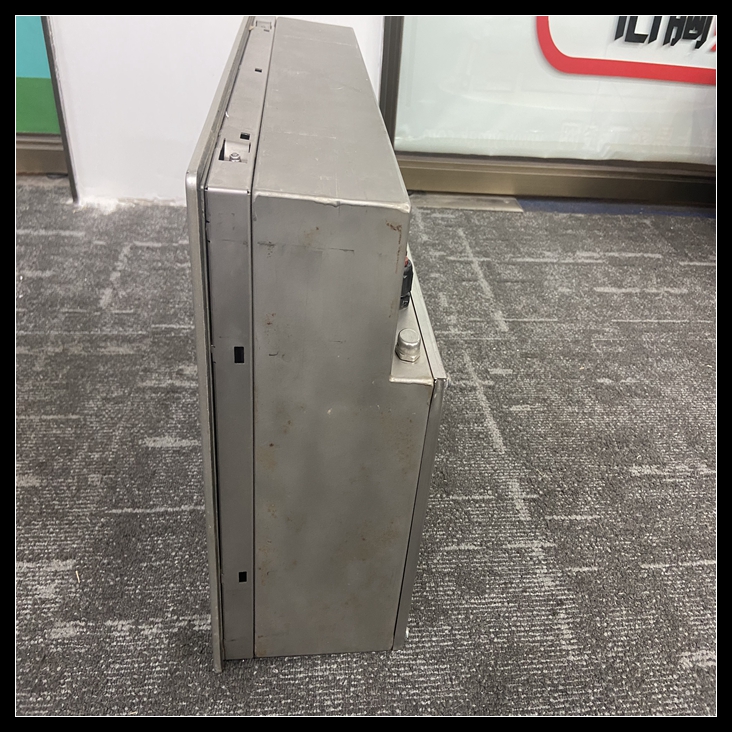

STAHL ET-436-AT-R2-HB-TX-100GB-V机器人模块
连接到A端子（上图中标记为NC）是可选的。他们可能是
如下页所示使用。
带箱式端子的接线板每个模块有25个端子，每个端子ET-436-AT-R2-HB-TX-100GB-V显示屏
可容纳一个AWG#14（平均横截面2.1mm2）到AWG#22（平均横截面0.36mm2
截面）导线，或两根AWG#18（平均0.86mm2横截面）以下的导线。当外部
使用跳线，导线容量从AWG#14（2.10mm2）减小到AWG#16
（1.32mm2）。
带安全栅端子的输入/输出接线板每个模块有18个端子。每个终端
可容纳一条或两根AWG#14（平均横截面2.1mm2）以下的电线。
带连接器的输入/输出接线板每个模块有一个20针公接头。这个
配对接头为Amp零件号178289–8。AMP D–3000中的任何镀锡触点
该系列可与连接器一起使用（Amp零件号1–175217–5用于高接触力
20–24号（0.20–0.56mm2）电线插座），1–175218–5用于高接触力
16-20规格（0.56-1.42mm2）的插座。STAHL ET-436-AT-R2-HB-TX-100GB-V显示屏
Connection to the A terminals (marked NC in the diagram above) is optional. They can be
used as shown on the next page.
The Terminal Block with box terminals has 25 terminals for each module, each of which
accommodates one AWG #14 (avg 2.1mm2 cross section) to AWG #22 (avg 0.36mm2 cross
section) wire, or two wires up to AWG #18 (avg. 0.86mm2 cross section). When an external
jumper is used, the wire capacity is reduced from AWG #14 (2.10mm2) to AWG #16
(1.32mm2).
The I/O Terminal Block with barrier terminals has 18 terminals per module. Each terminal
can accommodate one or two wires up to AWG #14 (avg 2.1mm2 cross section).
The I/O Terminal Block with Connectors has one 20-pin male connector per module. The
mating connector is Amp part number 178289–8. Any tin-plated contact in the AMP D–3000
series can be used with the connector (Amp part number 1–175217–5 for high contact force
receptacle for 20–24 gauge (0.20–0.56mm2) wires), 1–175218–5 for high contact force
receptacle for 16–20 gauge (0.56–1.42mm2)).
