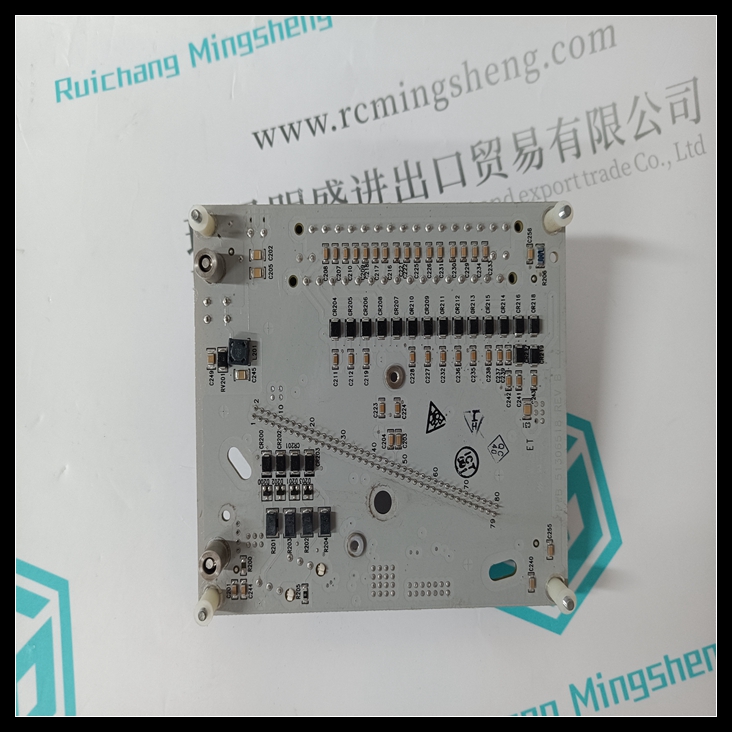

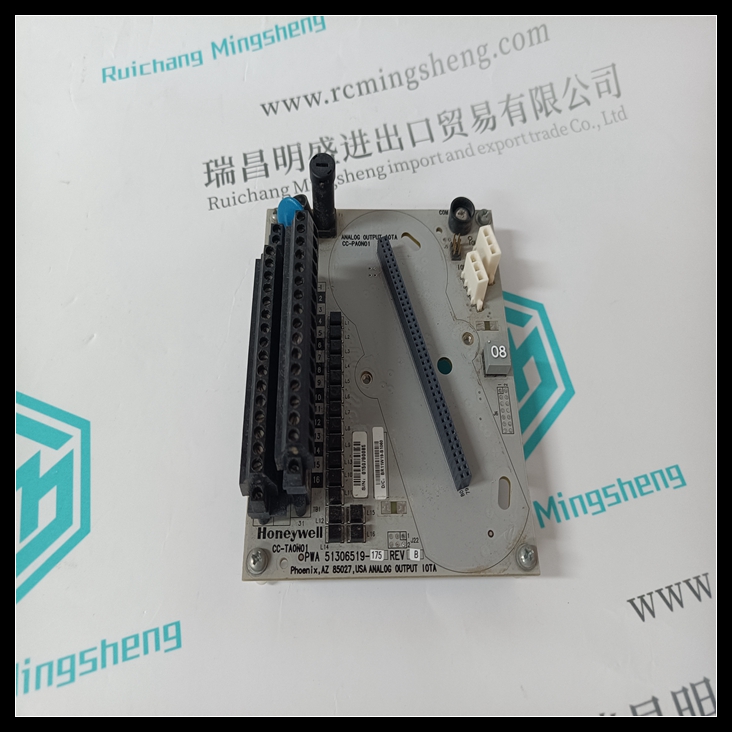

HONEYWELL CC-TAON01占位模块,英文使用说明CC-TAON01
输出
如果发生复位或局部故障，模块可以设置实际输出CC-TAON01
设置为零或保持其最后的值（这需要本地电源）。
零零，保持最后状态
信道激活信道是否响应命令的模拟和离散
输出数据和返回警报。如果通道处于非活动状态，则其输出为
零如果以前的活动通道重新配置为非活动通道，则任何
仍然可以使用Q数据清除预先存在的报警。
活动-非活动，活动
范围有两个预设缩放范围。
+/–10V（双极）范围：量程和工程单位为+/–10000。
0至10V（单极）范围：量程和工程单位从0至
10,000.
+/–10V+/–10V，
0至10V
以毫伏为单位的低实际电压范围将缩放为低工程单位10000–16384至
16 383量程以毫伏为单位的高实际电压，以高工程单位为单位+10,000 +16,383
工程低工程单位，相当于低跨度值–10,000
HONEYWELL CC-TAON01占位模块
工程
高的
相当于高跨度值的工程单位。
Local Defaults:
Outputs
If a reset or local failure occurs, the module can set the actual outputs
to zero or hold their last values (this requires local power).
Zero
Zero, Hold Last
State
Channel Active
Whether a channel will respond to commanded analog and discrete
output data and return alarms. If a channel is inactive its output is
zero. If a previously-active channel is reconfigured as inactive, any
pre-existing alarms can still be cleared using Q data.
Active
Inactive, Active
Range
There are two preset scaling ranges.
+/–10V (bipolar) range: span and engineering units from +/–10,000.
0 to 10V (unipolar) range: span and engineering units from 0 to
10,000.
+/– 10V
+/–10V,
0 to 10V
Span Low
Actual voltage in millivolts to be scaled to low engineering units.
–10,000
–16,384 to
16 383
Span High
Actual voltage in millivolts to be scaled to high engineering units.
+10,000
+16,383
Engineering Low
Engineering units equivalent of the low span value.
–10,000
Engineering
High
Engineering units equivalent of the high span value.
