SCHNEIDER 140CPU65160 中央处理器
1.产 品 资 料 介 绍：
中文资料：
SCHNEIDER 140CPU65160中央处理器是施耐德昆腾系列的一款产品，它在工业自动化和控制系统中扮演着关键角色，负责执行用户编写的控制逻辑、监视过程和处理输入输出信号。
在功能方面，该中央处理器模块具有强大的处理能力，可以处理大规模的控制任务。它支持多种通信接口，如以太网、串行通信等，以与其他PLC模块、外部设备和上层监控系统进行通信。此外，它提供用于存储用户编写的控制程序的内存空间，包括RAM（随机存取存储器）和闪存，并集成了实时时钟以支持时间戳和时间相关的控制功能。
在结构和特点上，140CPU65160具有1个循环/周期性主任务，1个周期性快速任务，128个I/O中断任务和32个定时器中断任务，以及4项辅助任务。这种结构使得处理器能够高效地处理各种任务，并快速响应各种事件。同时，该处理器还具有本地信令功能，包括用于以太网连接的绿色LED灯和用于指示以太网冲突的红色红灯，方便用户进行故障排查。
此外，该处理器在I/O能力上表现出色，拥有2/3/4/6/10/16插槽，本地I/O 2机架（1主+1扩展），远程I/O（RIO）31个具有2个机架的远程站（1主+1扩展），以及分布式I/O（DIO）拥有63个单机架分布站的3个网络。这些特性使得它能够连接和管理大量的输入输出设备，满足复杂控制系统的需求。
在电气连接方面，该处理器配备了丰富的接口，包括1个USB端口、2个分布式as接口和4个远程接口、6个本地以太网TCP/IP、6个本地Modbus Plus、6个本地Profibus DP和1个Modbus RS232/485。此外，它还包括一个用于连接Modbus Plus网络的母连接器SUB-D 9、一个用于连接以太网网络的RJ45连接器和一个专门设计用于连接Modbus总线的RJ45连接器。
英文资料：
SCHNEIDER 140CPU65160 central processor is a product of the Schneider Kunteng series, which plays a crucial role in industrial automation and control systems, responsible for executing user written control logic, monitoring processes, and processing input and output signals.
In terms of functionality, the central processing unit module has powerful processing capabilities and can handle large-scale control tasks. It supports multiple communication interfaces, such as Ethernet, serial communication, etc., to communicate with other PLC modules, external devices, and upper level monitoring systems. In addition, it provides memory space for storing user written control programs, including RAM (Random Access Memory) and flash memory, and integrates real-time clocks to support timestamp and time related control functions.
In terms of structure and characteristics, 140CPU65160 has 1 cyclic/periodic main task, 1 periodic fast task, 128 I/O interrupt tasks and 32 timer interrupt tasks, as well as 4 auxiliary tasks. This structure enables the processor to efficiently process various tasks and respond quickly to various events. At the same time, the processor also has local signaling functions, including green LED lights for Ethernet connections and red lights for indicating Ethernet conflicts, making it convenient for users to troubleshoot.
In addition, the processor performs excellently in I/O capabilities, with 2/3/4/6/10/16 slots, 2 local I/O racks (1 main+1 expansion), 31 remote I/O (RIO) stations with 2 racks (1 main+1 expansion), and 3 networks with 63 single rack distribution stations for distributed I/O (DIO). These features enable it to connect and manage a large number of input and output devices, meeting the needs of complex control systems.
In terms of electrical connections, the processor is equipped with a variety of interfaces, including 1 USB port, 2 distributed AS interfaces, and 4 remote interfaces, 6 local Ethernet TCP/IP, 6 local Modbus Plus, 6 local Profibus DP, and 1 Modbus RS232/485. In addition, it also includes a female connector SUB-D 9 for connecting Modbus Plus networks, an RJ45 connector for connecting Ethernet networks, and an RJ45 connector specifically designed for connecting Modbus buses.

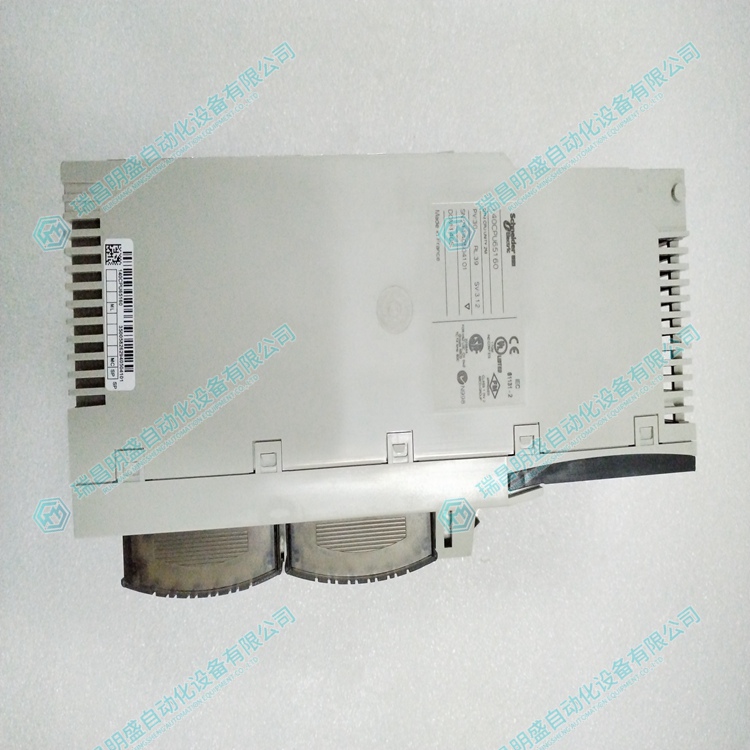

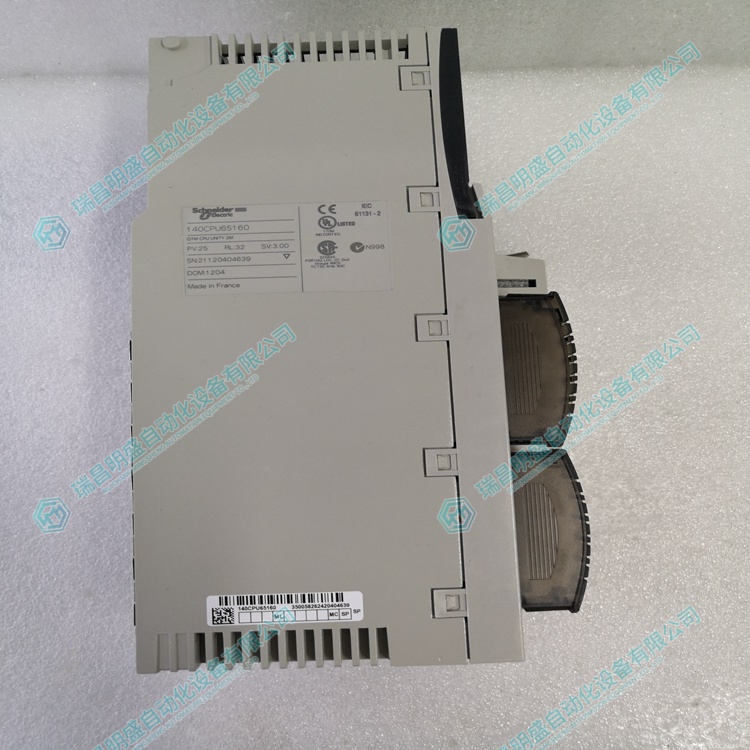

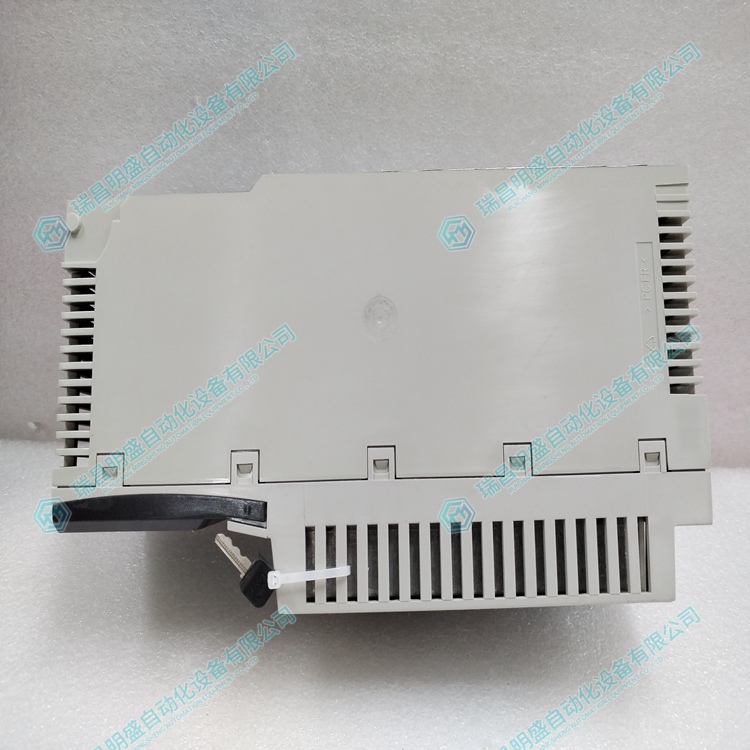

2.产 品 展 示
